Rotary Tablet Press for Big Size Tablets Manufacturing

Quantity:
  • 1 Set
  • Shanghai, China
  • 1000PCS/Y
  • L/C, T/T, Western Union
  • ZP17B
  • SYQPM
  • Shanghai, China
  • 8419820090
  • Preparation Machinery
  • Tablet
  • CE, GMP
  • Could Press Max.40mm Dia and 15mm Thickness Tablet
  • Standard Packaging
  • CE
ZP17B rotary tablet press is intended for pressing tablets from different granular materials. Typically, this rotary tablet press is applicable to not only round tablets but also different geometrical shape tablets, double-layer and annular tablets. The tablets may have letters impressed on the both sides. The turret carries 17sets of movable punches and dies. So17 tablets will be pressed at each revolution of the turret.

Features
1. The depth of the filling material and the thickness of the tablet can be adjusted during operation.
2. Through the hydraulic drive system, the pressure for tablet pressing can be set. With a pressure gauge attached to this rotary tablet press, the pressure value is shown to an operator directly.
3. An overload protection unit is adopted to avoid the damage of the punches and apparatus in the case of overload.
4. This rotary tablet press stops automatically.

Technical Parameters

Dies (sets) 17
Max. Pressure (kn) 120
Max. Dia. Of tablet (mm) 40
Max. Depth of fill (mm) 18-25
Max. Thickness of largest table (mm) 8-15
Turret speed (r/min) 10-25
Length of up and down punch pole (mm) 42
Length of up punch pole (mm) 175
Length of down punch pole (mm) 180
Diameter of middle mould (mm) 52
Production capacity (PCS/h) 11400-25500
Motor power (kW) 7.5kw or 5.5kw
Overall size (mm) 900× 800× 1640
Weight (kg) 1500

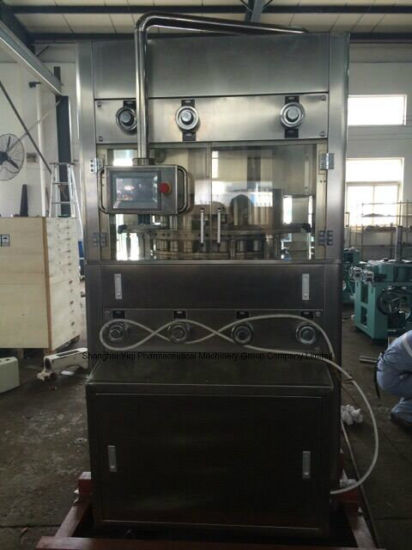

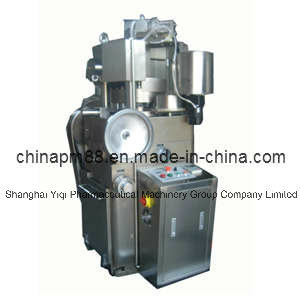

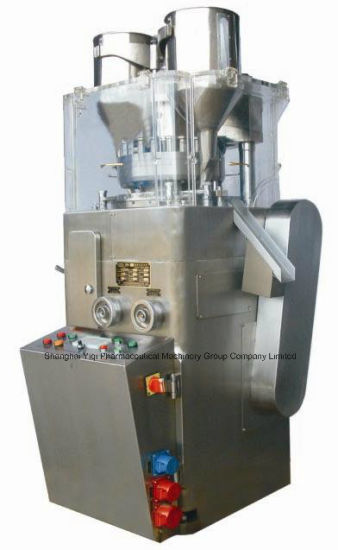

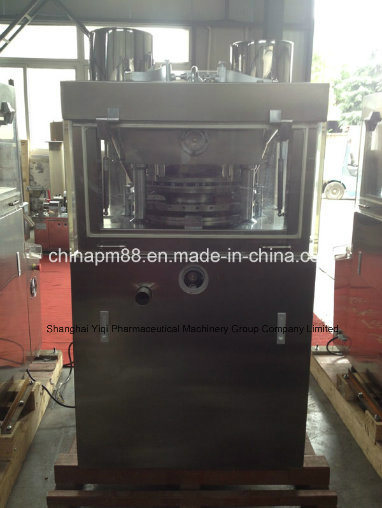

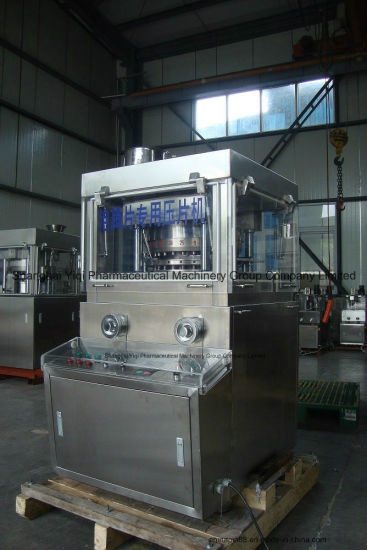

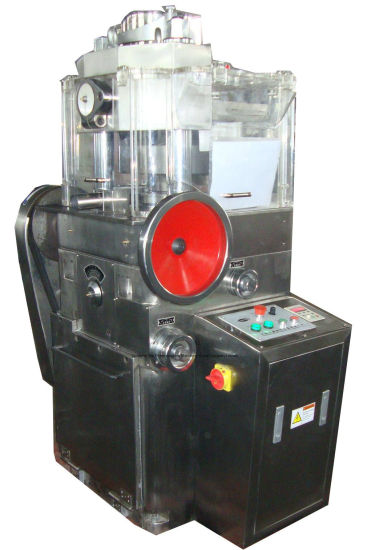

Rotary Tablet Press for Big Size Tablets Manufacturing

Rotary Tablet Press for Big Size Tablets Manufacturing
