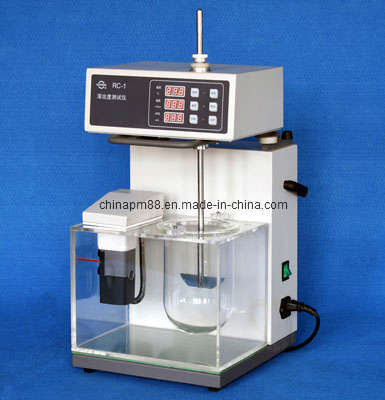

This Series of instruments are used for detecting velocity and extent of pharmic dissolution from tablet, capsule etc.
Applicable standards:
1. National standard (Chinese codex)/2000/
2. Corporate standard (Dissolution tester)Q2004
Features
1. It has one vessels and one poles, arranged on one line;
2. The head part of the instrument can be artificially turned over smoothly and flexibly.
3. The basket units and paddle units are made of imported stainless steel (ss316L)
4. The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
5. A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset ant any time.

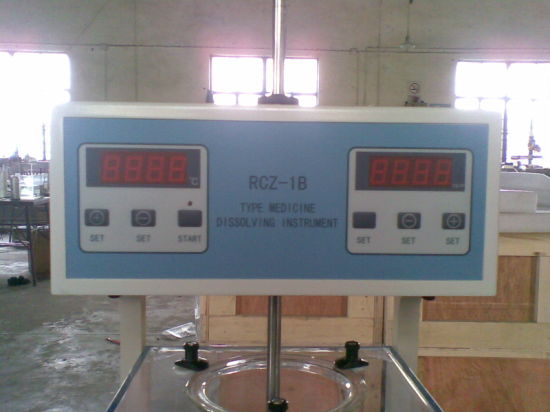

6. It can be operated conveniently by keystroke, The measurement result is displayed by LED, The preset and real data can be displayed alternately in time.
7. Automation: Auto-set, auto=diagnose, auto-alarm.
1. Speed range (20-200)rpm
2. Speed accuracy ± 2rpm
3. Temperature Range ambient to +39.9degree centigrade
4. Temperature Stability ± 0.3 degree centigrade
5. Automatic time range (5-900)min
6. Time accuracy ± 0.5min
7. Paddle radial run-out ± 0.5min
8. Basket radial run-out ± 1mm
9. Power 220V/50Hz/1000W or 110V/60Hz/1000W
10. Dimension (480× 260× 300)mm
11. Weight 15KG
