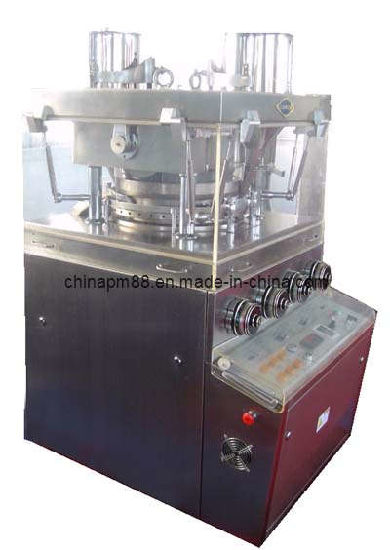

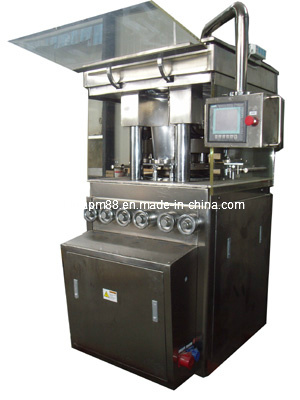

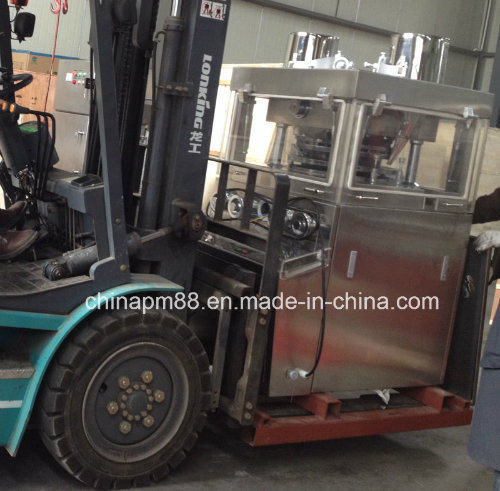

It is a GMP standard rotary tablet press with double compression, continuous automatic working for pressing granules into tablets with different shapes, or to be double color and could be carved letters on both sides. It is mainly for manufacturing tablets in pharmaceutical, chemical, foods, electronics industry.
(Note: When manufacturing double color pieces, it not only need to replace components, but also a device for removing and sucking powders which greatly lowers the cost and increases profit. )
Operating Principle of ZP35D/37D/41D rotary tablet press: 1. The cover is made of stainless steel with close type. The inner tablet surface is also made of stainless steel materials which could keep surface luster and prevent from cross pollution. Our ZP35D/37D/41D rotary tablet press meets GMP requirement.
2. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain.
3. All monitors and operating components are in good order.
4. Applying with frequency changing, speed regulating apparatus to do electricity regulation. The convenient operation and smooth rotation are safe.
5. Equipped with over-load protection apparatus. When pressure overloads, the machine will stop automatically.
6. Combining ZP35D/37D/41D rotary tablet press with electricity, equipped with touching key and screen.
7. The first kind rotary tablet press is with semi-automatically lubricating equipment and plexiglass anti-dust cover on the upper of revolving table.
8. Transmitting system is sealed in the oil box under the main machine. It is a separate component, no pollution, easy heat dissipation, wear resistance.
9. Powder cleaner could absorb the powder in the piece-pressing room.
10. Easily-damaged components such as upper orbit, material-adding machine, transmitting pole, powder measurer have general structures with ZP33 products which could help to be standard, general and series.
11. Mould is similar generally to ZP19, ZP33, ZP35 and ZP37 rotary tablet press.

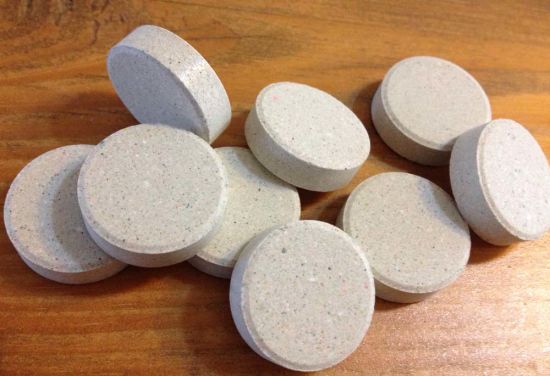

Tablet press, is also can be called as tablet press machine, pill press machine, tablet compression machine and tablet making machine, is for pressing powder raw materials into tablets.
Technique Parameters of ZP35D/37D/41D rotary tablet press:
| Type | ZP35D | ZP37D | ZP41D |
| Dies (sets) | 35 | 37 | 41 |
| Max. Pressure (KN) | 80 | 80 | 80 |
| Max. dia. of tablet (mm) | 13(special)16 | 13 | 13 |
| Max. Depth of fill (mm) | 15 | 15 | 15 |
| Thickness of largest tablet (mm) | 6 | 6 | 6 |
| Turret speed (r/min) | 5-36 | 14-37 | 14-37 |
| Production capacity (pc/h) | 150000 | 160000 | 170000 |
| Motor (kW) | 4 | 4 | 4 |
| Overall dimensions(mm) | 980*1240*1690 | 1230*950*1670 | 1230*950*1670 |
| Net weight (kg) | 570 | 560 | 560 |
