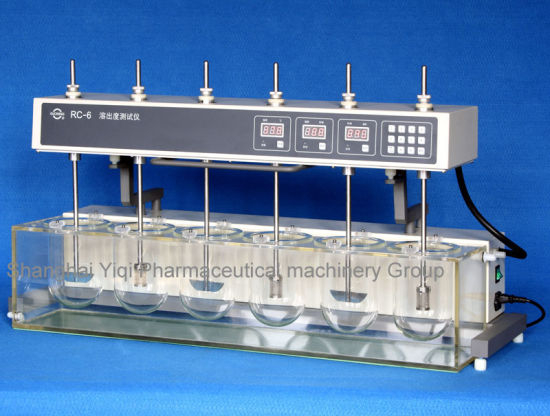

The testers are used for detecting velocity and extent of pharmaceutical dissolution from tablet, capsule etc.
Applicable standards:
National standard (Chinese codex) 2005
Corporate standard (Dissolution tester)Q-2004
Features:
1. It has six vessels and six poles arranged on one line.
2. The head part of the tester can be artificially turned over smoothly and flexibly.
3. The basket units and paddle units are made of imported stainless steel (SUS 316L)
4. The magnetism-pumped circular water current can heat the system evenly, and the bath liquid
Can achieve an equal temperature.
5. A MPU is used in dissolution tester to automatically control the temperature rotational speed
And time, and the parameters can be preset at any time.
6. It can be operated conveniently by keystroke, the measurement result is displayed by LED, the
Preset and real date can be displayed alternately in time.
7. Automation: Auto-set, auto-diagnose, auto-alarm.
8. It can test by self and alarm automatically, the dissolution parameters of Chinese codex 2005
Are stored in and can be taken out at any time.
9. Time can be preset at many points, the beeper sounds automatically to any point, and then the
Tester automatically runs to the next one.
Technical data:
Speed range: 20-200 r/min
Speed accuracy: +/- 2 r/min
Temperature range: Room temperature to 45 c
Temperature accuracy: +/- 0.3 c
Preset timing: Nine points(1-999)minute
Time accuracy: +/- 0.5 minute
Paddle radial run-out: +/- 0.5 mm
Basket radial run-out: +/- 1 mm
Power: 220V/50Hz/1000W or 110V/60Hz/1000W
Weight: 56 kg
Overall size: 960*400*480 mm
| Speed range | (20~200)rpm |
| Speed accuracy | ±2rpm |
| Temperature range | Ambient to +45.0ºC |
| Temperature stability | ±0.3ºC |
| Preset timing | Nine points(1~999)min |
| Time accuracy | ±0.5min |
| Paddle radial run-out | ±0.5mm |
| Basket radial run-out | ±1.0mm |
| Power | 220V/50Hz/1200W or 110V/60Hz/1200W |
| Dimension | (960 x 320 x 480)mm³ |
