PVC Milling Machine/ Plastic Miller/Pulverizer/ Plastic Grinding Machine (WFJ-400)

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 1000
Payment Terms: L/C, T/T, Western Union
Model NO.: WFJ
Customized: Non-Customized
Condition: New
Warranty: 1 Year
Total Power: 14kw
Weight: 800kg
Fineness: 20-250meshes
Input Size: <15mm
Capacity: 50-500kg
Trademark: SYQ
Transport Package: Polywood Case
Specification: 14CBM
Origin: Shanghai
HS Code: 8479820090
Type: Preparation Machinery
Finished Dosage Form: Powder
Precision: High Precision
Certification: CE, GMP, ISO
Voltage: 380V
Computerized: Computerized

Product Description

Main application

(1) The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen.

(2) It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to Chinese herbal Medicines with fibers and the materials with oil.

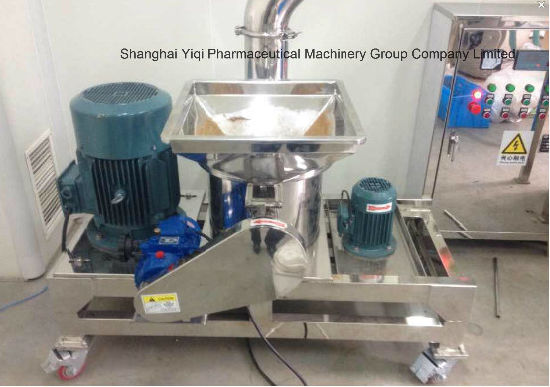

(3) The machine is composed of feeder, grading wheel, pulverizer blades, gear, pulverizing motor, discharging gate, fans, collection box, dust absorption box, etc.

(4) Any raw material being fed into grinding chamber through the upper feeder, is pulverized by high-speed running blades.

(5) The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate

(6) The high-speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while those unpulverized remained in the chamber

(7) The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box.

(8) GMP standard .
(9) M ade of stainless steel SS304 or SS316.
(10) with the features such as easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.

Technical parameters:

Model	Model 200	Model 300	Model 400

Capacity (kg/h )	10-150	20-300	50-500

Size of input granules( mm )	≤ 5	≤ 12	≤ 15

Fineness of products	20-250	20-250	20-250

Grinding power (kw )	5.5	7.5	11

Dust absorption power (kw )	1.5	2.2	3

Weight ( kg )	320	550	680

Overall size ( L× W× H )(mm )	1000× 800× 1700	1200× 850× 1800	1500× 900× 1950

Pharmaceutical Machinery Pulverizer Pulverizing Machine
