Mini Tablet Film Coater for R & D (BG-3)

Quantity:
  • Shanghai, China
  • 500
  • L/C, T/T, Western Union
  • BG-3
  • Customized
  • New
  • 1 Year
  • for Different Sizes and Shapes of Tablets
  • SYQ
  • Export Standard
  • CE
  • Shanghai, China
  • 8479899090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
The machine is applied for coating the organic film, water soluble film and sugar.Put the tablet or pellet into the coating drum, the tablet or pellet unceasingly moves in the clean and hermetic rotating coating drum.In the movements, with the requests of reasonable process parameters, coating medium is automatically sprayed, at the same time, hot air is supplied under a negative pressure, which is vented out through the tablet or pellet layer from the bottom of the coating medium sprinkled on the tablet or pellet surface gets dried promptly and equally with forming a solid and smooth surface film.

Features:
1.As required by the standard of GMP, the quantitative index instruction operation is applied as possible as it could in the medication production process.
2.Under the streamline diversion plate blender's effect, the prime pistil overturns fluently, exchanges frequently and excludes the collision phenomenon when the prime pistil falls from high, settles the fragment and knocked edge and enhances finished product ratio.Surface of the diversion plate is narrow and small with excluding adherence of dressing to its surface, saving the dressing and improving medication quality.
3.The peristaltic pump
With constant variable precludes return pope.The return radius of the drumvaries any time with pressure change, output and pulp spraying quantity automatically balance, which stabilize the atomization effect, simplify the atomization system, prevent spray gun clogging and save dressing, what's more, it is simple to clean and without any dead corner.

4.The spray guns are especially designed and manufactured for the coating machine, and the atomization is equal, the spraying is large and the universal adjustable nozzle is independent from loading volume.
5. negative pressure display and control inside the coating boiler.
6. supplied hot air's speed display and control
7. spray gun anti-clogging function.
8.The above functions enables related technical parameters to realized quantitative display and control, the SOP operation method formulation turns feasible and uses quantitative index instruction for the operation, consistency of medication quality in every lot is guaranteed with totally in line with the GMP requirements.
9.This equipment has awarded the appraisal by provincial science and technology inspection department.

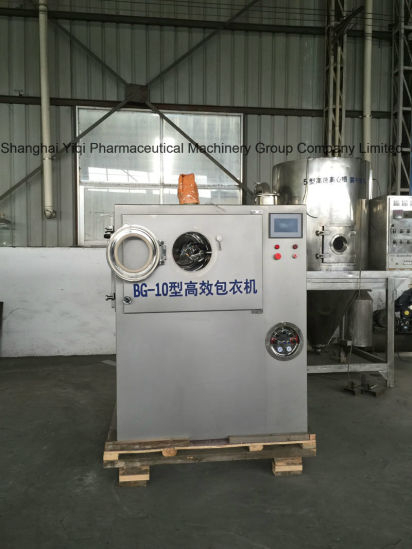

Technical parameters for BG-10:
Model:10D high efficient tablet coating machine
Main
Machine
Max loading capacity:10kg
Rotation speed of coating pan:0-35rpm Coating Pan Diameter:600mm
Power of main machine:0.75kw
Compressed air:1.0m3/min pressure: ≥0.4Mpa
Main machine dimension:1150*880*1480mm
Imported brand spray gun, could be adjustable for the spraying atomizing shape, distance, and angel.

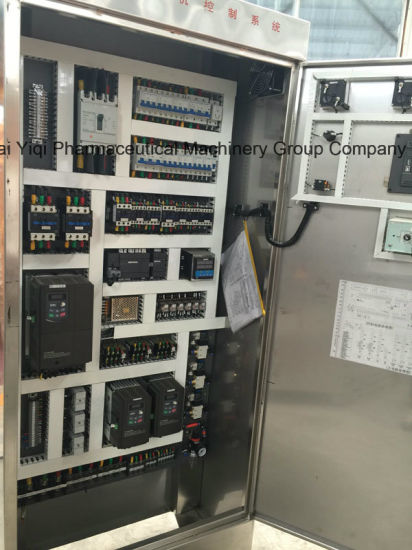

Man-machine operation system, PLC control.
High efficiency filtering quake proof hot air blower Hot air blower for filtering: 0.37kw
Filtering density: 0.5μm,
Clean air: 100,000 class.
Cover of Hot air blower: Stainless steel
Hot air temperature: 80degree centigrade(adjustable)
Air inlet volume:850-1340m3/h
Dust collecting, quake proof, and sound muffling exhaust fan Power of dust collection exhaust fan:1.5kw
Exhausting volume:1380-2150m3/h
Exhaust fan cover stainless steel matte finished.
Heat preservation mixing tank model: TB-55
Including: pneumatic motor, air distributor, air filtering reducing valve
Mixing tank volume: 10L
Medium range:
Medium density: <4%, viscosity: <200cSt
Medium density: ≤14%, viscosity: <10cSt.

Programmable anti-explosion peristaltic pump
Model:YZ-15
Motor Power: 0.6kw Max. rotation: 2800rpm
Max. flow:6-383m1/min with water medium
Feeding and discharging device Pipe Diameter:7-14mm
SS304
Main power supply: 8kw
weight:120Kg

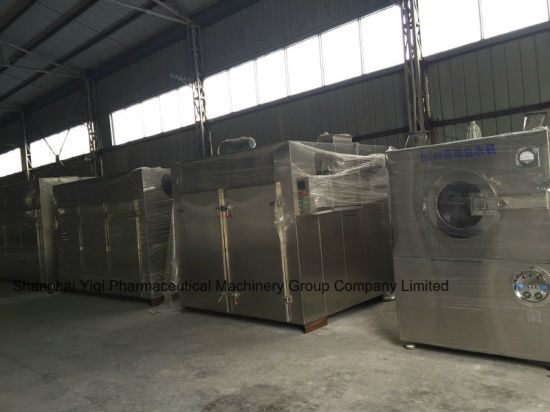

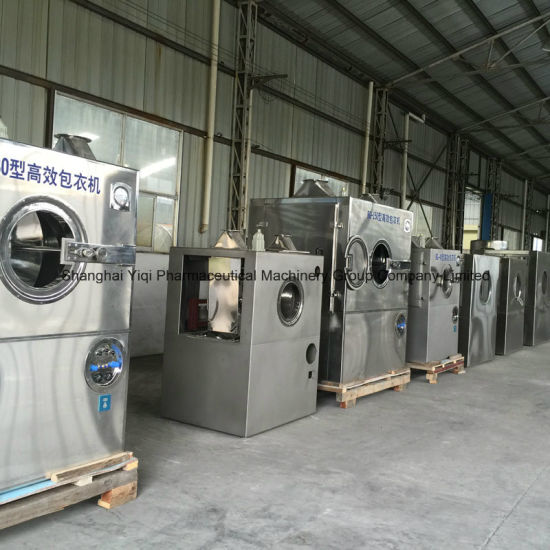

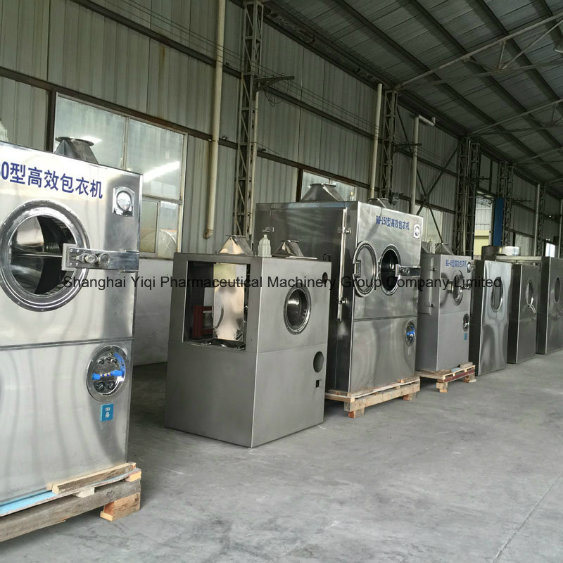

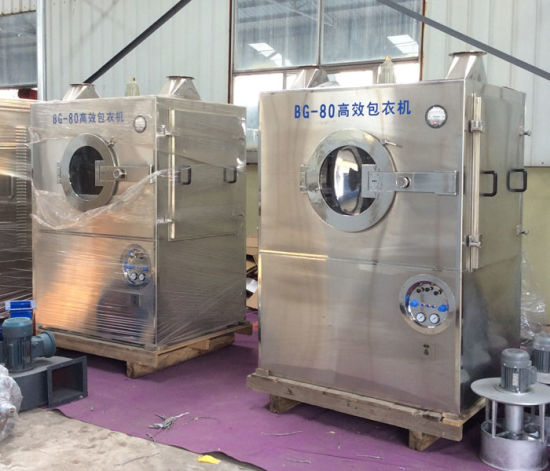

We provide BG Series with ranges 1kg, 3kg, 5kg, 10kg, 40kg, 80kg, 150kg, 200kg, 350kg, 600kg, 800kg capacity. welcome to check with us and visit our factory.
For R & D manufacturing, you may choose 1, 3, 5kg or 3, 5, 10kg capacity machine.

Mini Tablet Film Coater for R & D (BG-3)

Welcome to send us your specific requirements. Thank you in advance.


Mini Tablet Film Coater for R & D (BG-3)
