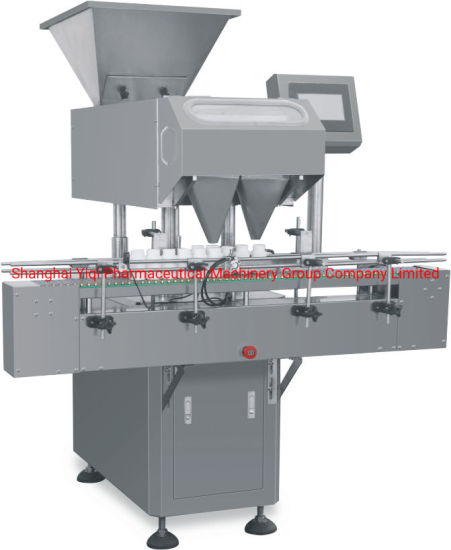

High-Speed Electronic Tablet and Capsule Counting Machine for Pharmaceutical Packaging by Bottles

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 2000
Payment Terms: L/C, T/T, D/P, Western Union
Model NO.: EC-16B
Customized: Customized
Condition: New
Warranty: 1 Year

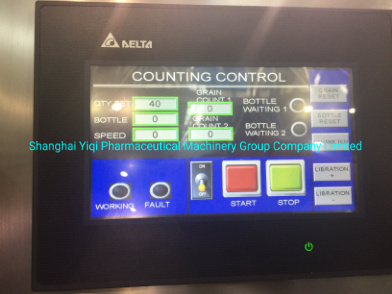

Control: PLC & Touch Screen
Production Line: Could Be a Packing Line
Trademark: SYQ
Transport Package: Wooden Case
Specification: could be 8 channel, 12 channel, 16 channel double
Origin: Shanghai
HS Code: 8433909090
Type: Pharmaceutical Packaging Machinery
Finished Dosage Form: Tablet, Capsule, Pills
Precision: High Precision
Certification: CE, GMP, ISO
Voltage: 220V
Computerized: Computerized

Product Description

Working principle of the Automatic pharmaceutical tablet/capsule counting machine

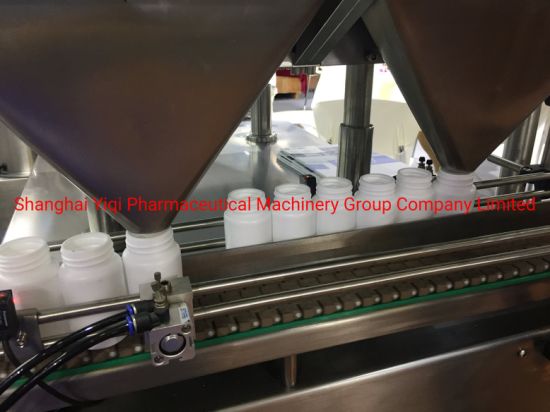

Bottle mechanism: the bottle stopper on the bottle feeding track will stop the bottles from the previous equipment in the filling position and wait for filling. The medicine enters the medicine storehouse orderly by the vibration of the corrugated plate. A counting photoelectric sensor is installed on the medicine storehouse, and the medicine falling into the medicine storehouse is loaded into the bottle at the bottling position after quantitative counting by the photoelectric counting sensor.

The main features
(1) strong compatibility, it can count and bottle tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles;

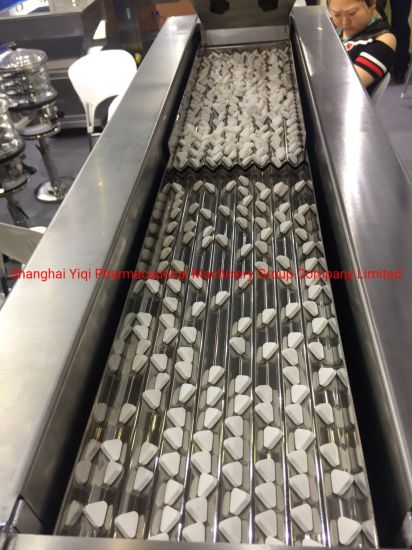

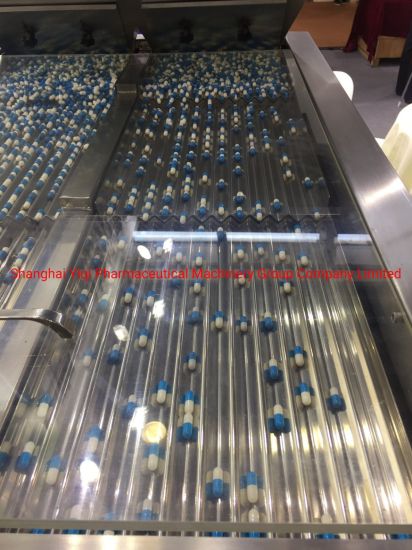

(2) vibration blanking: 24 channel vibration even blanking, special patent flip plate packaging mechanism blanking, discharging uniform and stable, no damage to the drug;
(3) anti-high dust: the company's original anti-high dust photoelectric sensing technology can work stably in the case of high dust;
(4) accurate counting: photoelectric sensor automatic counting, bottling error is less than the national standard;
(5) special structure of leakage, can prevent plugging, small bottle bottle can also quickly bottling (optional);
(6) high degree of intelligence, with no bottle no number, fault self-test and other detection alarm control functions;
(7) supporting functions: automatic detection of missing bottle photoelectric sensor, automatic shutdown;
(8) simple operation: intelligent design is adopted, and various operating parameters are set as required;
(9) easy maintenance: operators only need simple training to operate, disassembly, cleaning, replacement parts is simple and convenient, do not need tools;
(10) sealing and dustproof: dust removal box is equipped to reduce dust pollution (optional).

Main technical parameters

Applicable bottle	round, square plastic bottle
Filling objects	00 ~ 5 # capsule, soft capsule, 5.5 ~ 20 Φ tablet, special-shaped pieces, sugar pill, Φ 3 ~ 20 pills
Production capacity	20-90 bottles/min (related to bottle size, loading capacity and drug size)
Bottled volume setting range	1 -- 9999
Power	AC220V 50Hz 1.5kw
Accuracy	> 99.5% (better than industry standard)
Air Source	0.6 Mpa
Overall dimensions	1400×1400×1560mm
Weight	220kg
