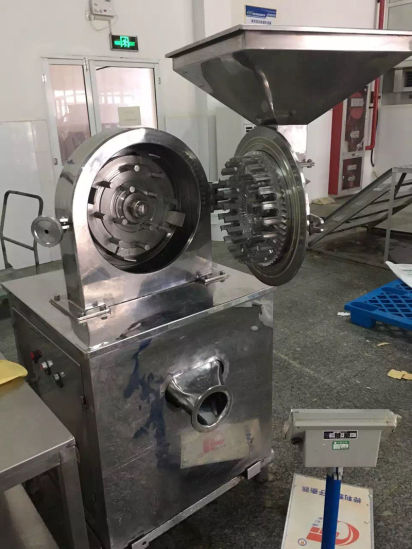

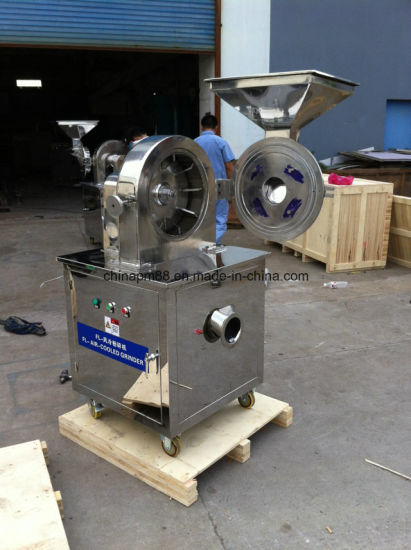

High Quality China Made Air Cooled Crusher (FL model)

Quantity:
  • Shanghai, China
  • 40/Month
  • L/C, T/T, Western Union
  • FL
  • High-Speed Steel
  • Outer Surface Process
  • >300MPA
  • Universal Tongs
  • 3cbm
  • 11kw
  • 770*750*1500
  • SYQ
  • Wood Case
  • 285kg
  • Shanghai
  • 84791000
  • Roller Crusher
  • Chemical, Foods, Pharmaceutical Materials
  • Electric
  • Fine Grinding Machine
  • Grinding and Impact
  • Roller Culling
Main Application
The FL series pulverizer is mainly suitable for pharmaceutical, chemical, food materials including: ginger, chili, pepper, naked oats, beans, star anise, cinnamon, white sugar, crystal materials for low and medium hardness materials such as fineness regulation ranges 10-120 mesh, with high capacity , fine granularity, low noise, low energy consumption, easy maintenance and convenient installation, especially suitable for oily, viscosity, heat sensitive, fibrous low hardness materials etc.


Features

(1) The crushing chamber is equipped with the wind wheel type high-speed rotating cutter, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber.

(2) It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.

3. Working Method

(1) The machine uses the wind wheel type high-speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen.

(2) different sizes of granules will be got by changing screen s .
Model FL-250 FL-350 FL-600 FL-800
Capacity(kg/h) 30-300 40-800 500-1200 600-2000
Size of input granules(mm) 5 5 5 5
Size of output granules(mesh) 30-120 30-120 30-120 30-120
Motor power(kw) 5.5 11 22 37
Speed of principal axis(r/min) 4200 3800 2900 2500
Weight(kg) 285 350 650 1050
Overall size(L*W*H) 550*420*1400 770*750*1500 1200*1000*2250 1650*1300*2350

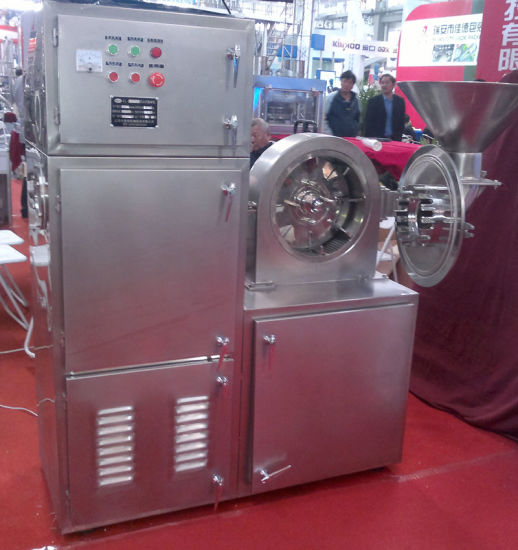

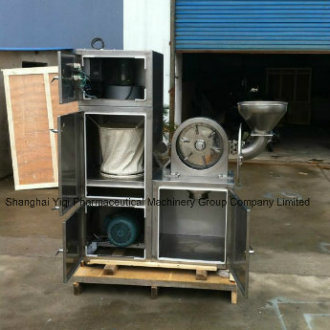

Air cooling pulverizer with dust collection system

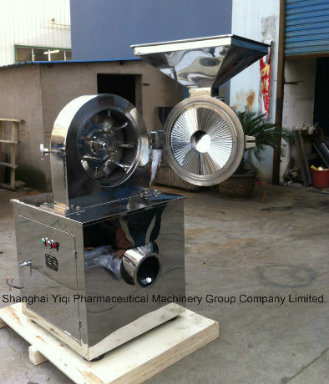

High Quality China Made Air Cooled Crusher (FL model)

High Quality China Made Air Cooled Crusher (FL model)
welcome to check with us for any pulverizers
