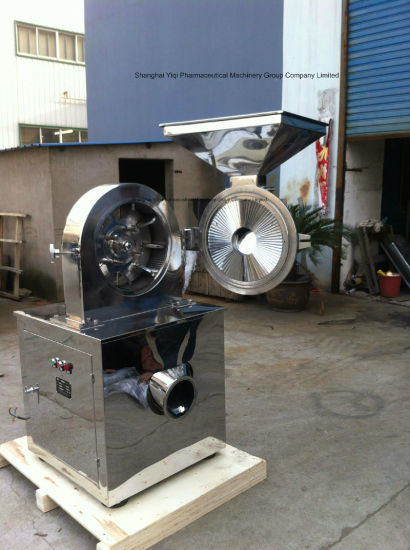

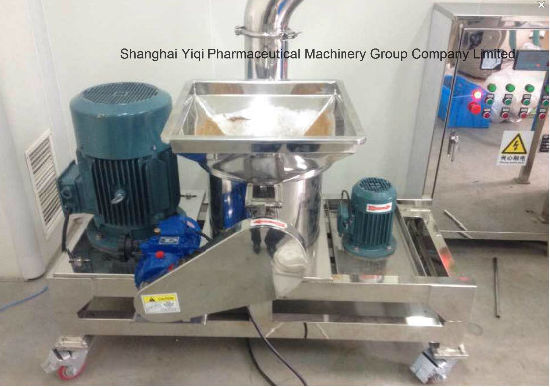

GMP ISO Ce Certified Herbal Medicine Pulverizer (WFJ-300)

Quantity:
  • Shanghai, China
  • 1000
  • L/C, T/T, Western Union
  • WFJ
  • Non-Customized
  • New
  • 1 Year
  • 10kw
  • 550kg
  • 20-250meshes
  • SYQ
  • Polywood Case
  • 14CBM
  • Shanghai
  • 8479820090
  • Preparation Machinery
  • Capsule
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized

Main application

(1) The machine is applied in industries such as pharmaceutics, foodstuff, chemicals and etc, with features of cool air and no sieve or screen.

(2) It is not limited by the viscosity, hardness, softness or fiber shape of the raw materials, and has good effect to all materials, especially to Chinese herbal Medicines with fibers and the materials with oil.

(3) The machine is composed of feeder, grading wheel, pulverizer blades, gear, pulverizing motor, discharging gate, fans, collection box, dust absorption box, etc.

(4) Any raw material being fed into grinding chamber through the upper feeder, is pulverized by high-speed running blades.

(5) The fineness of the finished products is regulated via the distance adjustment of grading wheel and grading plate

(6) The high-speed running fans will lead those pulverized material from grinding chamber to discharge gate via negative pressure while those unpulverized remained in the chamber

(7) The dust from grinding is filtered and recycled via the cloth bag or filter of the dust absorption box.

(8) GMP standard .
(9) M ade of stainless steel SS304 or SS316.
(10) with the features such as easy structure, convenient operation and cleaning, low noise and high capacity, avoiding dust flying in production.

Technical parameters:
Model Model 200 Model 300 Model 400
Capacity (kg/h ) 10-150 20-300 50-500
Size of input granules( mm ) ≤ 5 ≤ 12 ≤ 15
Fineness of products 20-250 20-250 20-250
Grinding power (kw ) 5.5 7.5 11
Dust absorption power (kw ) 1.5 2.2 3
Weight ( kg ) 320 550 680
Overall size ( L× W× H )(mm ) 1000× 800× 1700 1200× 850× 1800 1500× 900× 1950

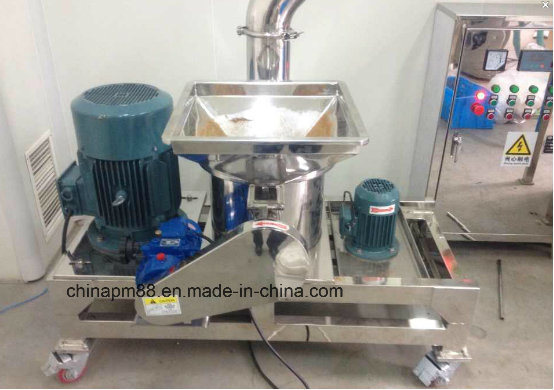

GMP ISO Ce Certified Herbal Medicine Pulverizer (WFJ-300)

GMP ISO Ce Certified Herbal Medicine Pulverizer (WFJ-300)
