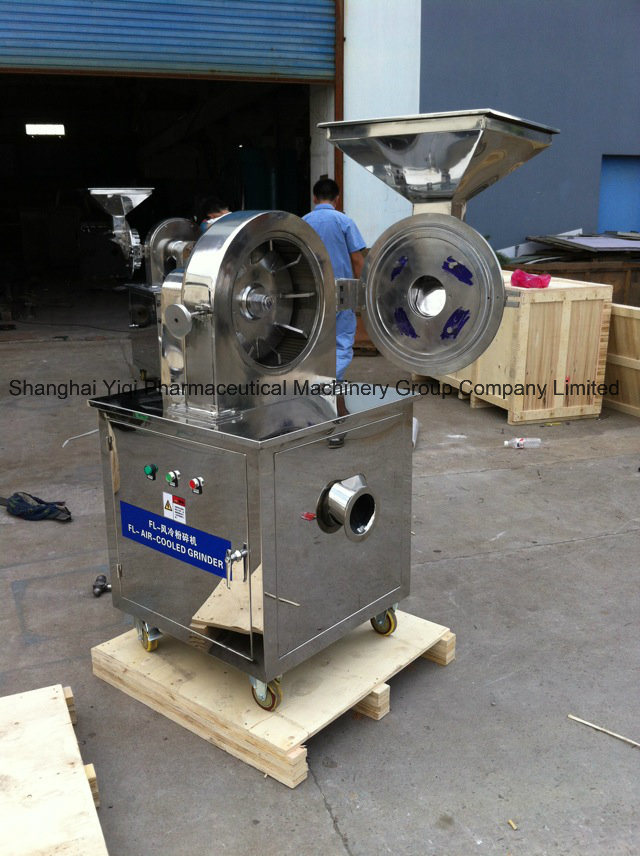

Fl Model China High Quality Food Powder Fine Grinder

Quantity:
  • Shanghai, China
  • 30/Month
  • L/C, T/T, Western Union
  • FL-500
  • Outer Surface Process
  • >300MPA
  • Universal Tongs
  • 3cbm
  • 5.5kw
  • SYQ
  • Wood Case
  • 285kg
  • Shanghai
  • 84791000
  • Roller Crusher
  • Chemical, Foods, Pharmaceutical Materials
  • Electric
  • Grinding and Impact
  • Roller Culling
  • High-Speed Steel
Main Application

Is mainly suitable for pharmaceutical, chemical, food (example: ginger, chili, pepper, naked oats, beans, star anise, cinnamon, white sugar, crystal materials) crushing processing, low and medium hardness materials such as fineness regulation between 10-120 mesh, with high capacity , fine granularity, low noise, low energy consumption, easy maintenance and convenient installation, especially suitable for oily, viscosity, heat sensitive, fibrous low hardness materials etc.


Features

(1) The crushing chamber is equipped with the wind wheel type high-speed rotating cutter, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber.

(2) It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.

3. Working Method

(1) The machine uses the wind wheel type high-speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen.

(2) different sizes of granules will be got by changing screen s .
Model FL-250 FL-350 FL-600 FL-800
Capacity(kg/h) 30-300 40-800 500-1200 600-2000
Size of input granules(mm) 5 5 5 5
Size of output granules(mesh) 30-120 30-120 30-120 30-120
Motor power(kw) 5.5 11 22 37
Speed of principal axis(r/min) 4200 3800 2900 2500
Weight(kg) 285 350 650 1050
Overall size(L*W*H) 550*420*1400 770*750*1500 1200*1000*2250 1650*1300*2350

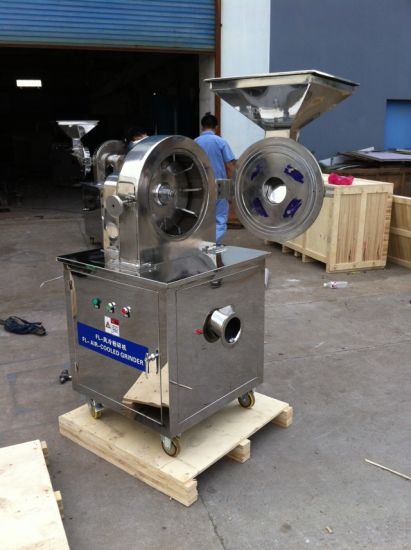

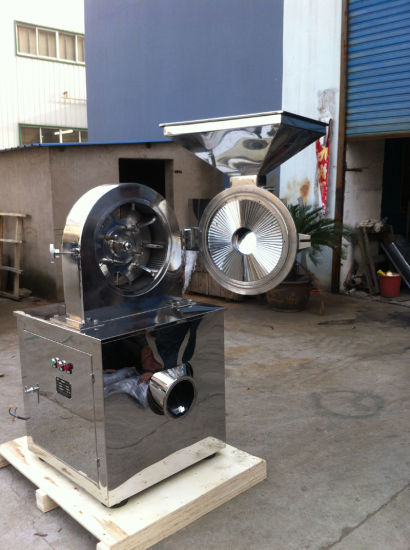

Air Cooled grinding machine without dust collecter:

Fl Model China High Quality Food Powder Fine Grinder

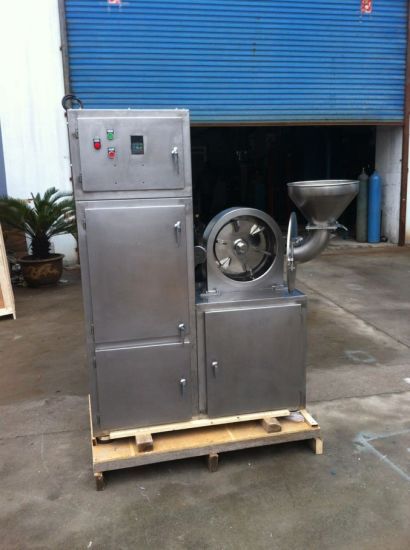

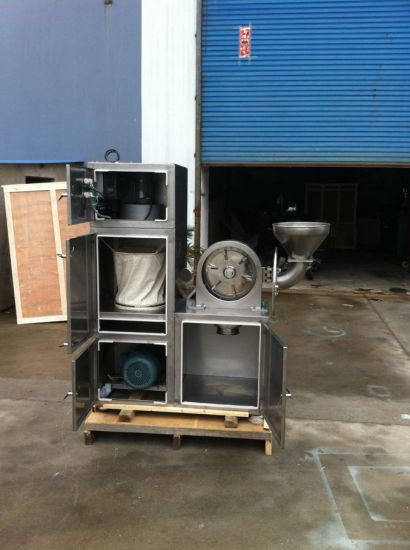

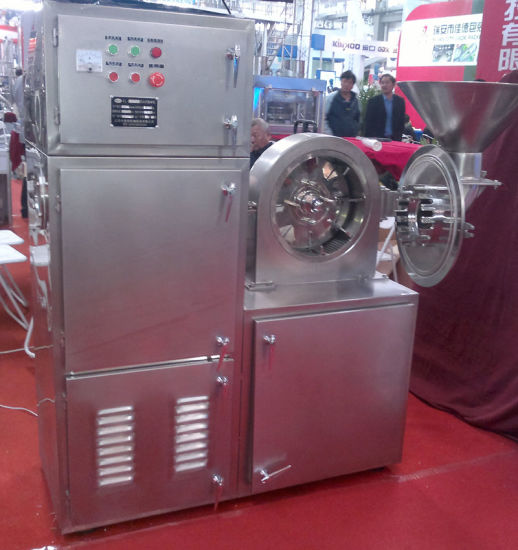

Air cooling pulverizer with dust collection system


Fl Model China High Quality Food Powder Fine Grinder


Fl Model China High Quality Food Powder Fine Grinder
