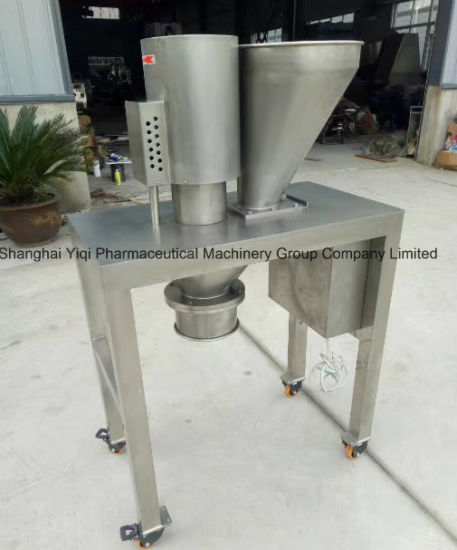

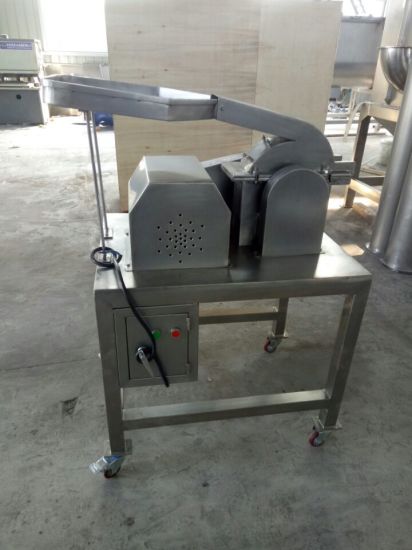

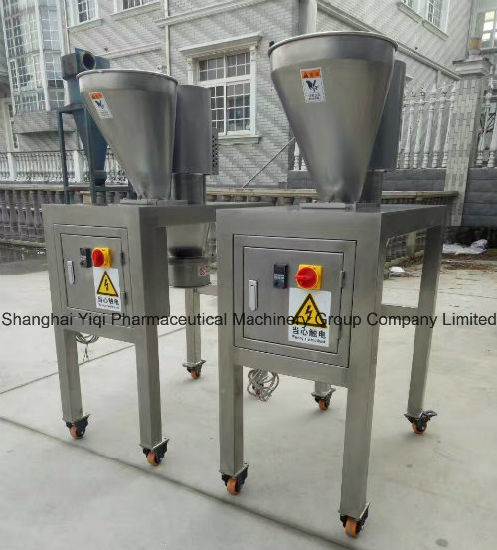

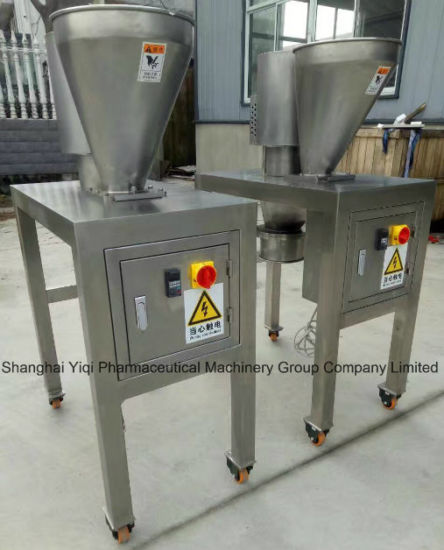

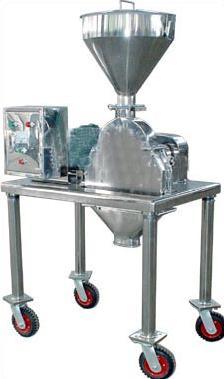

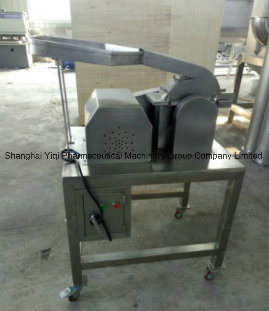

Fitz Mill Gfsj Series Pulverizer

Quantity:



Inquire

Port:
Shanghai, China
Production Capacity:
800
Payment Terms:
L/C, T/T, Western Union
Model NO.:
GFSJ-16
Customized:
Customized
Condition:
New
Warranty:
1 Year
Weight:
360
Capacity:
100-300kg/H
Fineness:
10-120 Mesh
Trademark:
SYQ
Transport Package:
Wooden Case
Specification:
1CBM
Origin:
Shanghai
HS Code:
8479820090
Type:
Preparation Machinery
Finished Dosage Form:
Granules
Precision:
High Precision
Certification:
CE, GMP, ISO
Voltage:
380V
Computerized:
Non-Computerized

Product Description

Specifications

1. The machine is consist of feed hopper, grinding chamber(blades, sieve, liners), discharg ing port, frame, and casters.
2. GMP standard.
3. Material contact part s could be made of SS16L or SS304.

Main applications

The equipment is designed by the principle of mixed powder jetting and is widely applied for pharmaceutical, foodstuff and chemical industries.

Features

It has a simple structure and is easy to be installed, dismantled and cleaned. All parts contacting materials are made of stainless steel, which is anti-acid and anti-corrosive, so that the machine is according with sanitary standard. The machine has the features of stable running, easy moving, low noise, high grinding efficiency, and low consumption of power.

Working Principle:

The mill is a high speed running machine. The raw materials are crushed by shearing of high speed knives, which are sharp knives on one side and impacting knives on the other side. We have equipped with various knives for you to choose. The different fineness of powder can be achieved by changing the different sieves or adjusting the speed.

Main technical parameters:

Model	GFSJ-16
Main shaft rotation speed (r/min)	3800
Feeding size	≤10mm
Grinding fineness (mesh)	10-120
Working capacity (kg/h)	100-300
Motor power (kw)	7.5
Dimensions(mm)	11808501600
Material contact parts	SUS316L
Weight(kg)	360

Granulator Mill Pulverizer
