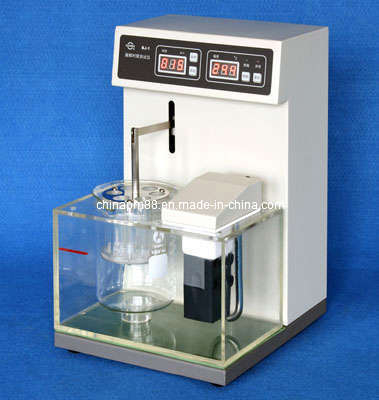

BJ series of instruments are used for detecting disintegration of solid in prescriptive conditions.
Applicable standards:
National standard (Chinese codex)/2000
Corporate standard ( Disintegration tester)Q/12XQ0I88-2004
Feature:
There are six tubes in one basket assembly.
Auto stop at timing point.
The bath liquid can achieve an even temperature.
A MPU is used to automatically control the temperature, time and frequency of nacelle back and
Forth.
Timing at will, the preset and real time data can be displayed alternately in time.
Automation: Auto-test, auto-diagnose, auto-alarm.
Technical data:
Basket Assembly: 1
Nacelle back and forth frequency: 30-32/minute
Nacelle back and forth range: (55+/-1) mm
Automatic timing range: 1-900 min
The accuracy of timing: +/- 0.5 minute
The range of temperature control: Room temperature - 45 c
Accuracy of temperature control: +/- 0.5 c
Power 220V/50Hz/600W or 110V/60Hz/600W
Dimension: 260*300*420 mm
| Basket assemblies | 1 |
| No. of tube | 6 |
| Volume of breaker | 1000ml |
| Nacelle up and down frequency | (30~32)/min |
| Nacelle up and down range | (55±1)mm |
| Min. distance of screen | (25±2)mm |
| Automatic timing range | (1~900)min |
| Precision of timing | ±0.5min |
| Temperature range | 20~45.0ºC |
| Precision of controlling temperature | ±0.5ºC |
| Power of heater | 500w |
| Continual working time | >24 hours |
| Power | 220V/50Hz 600w |
| Dimension | (260 x 300 x 420)mm³ |
| Weight | 11KG |
