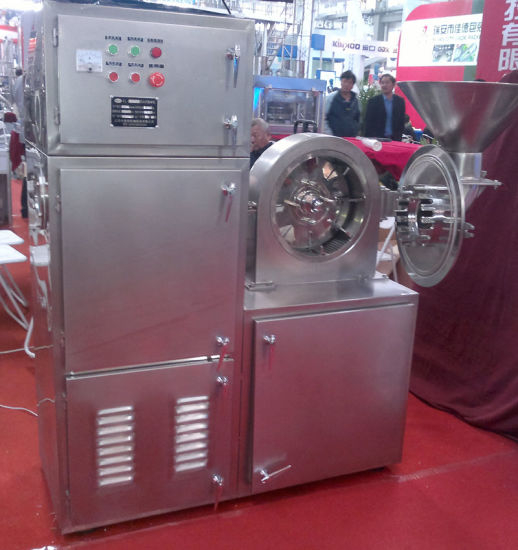

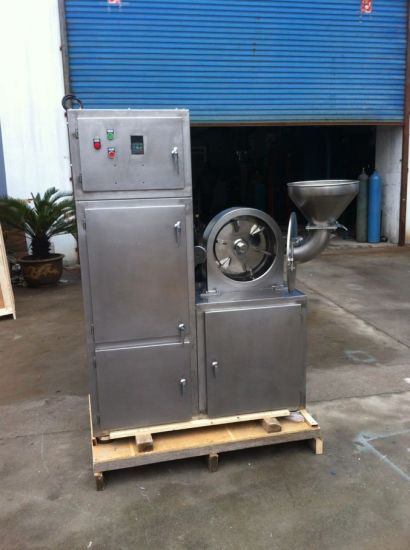

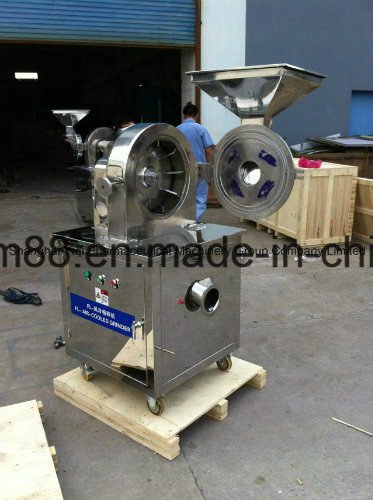

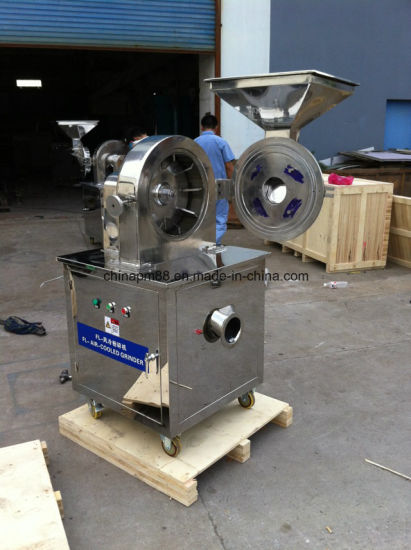

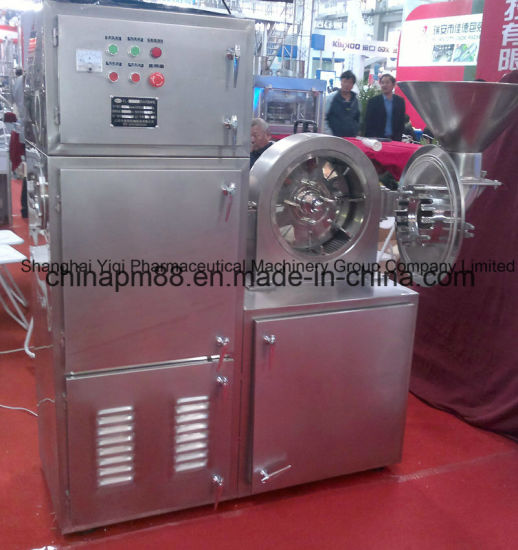

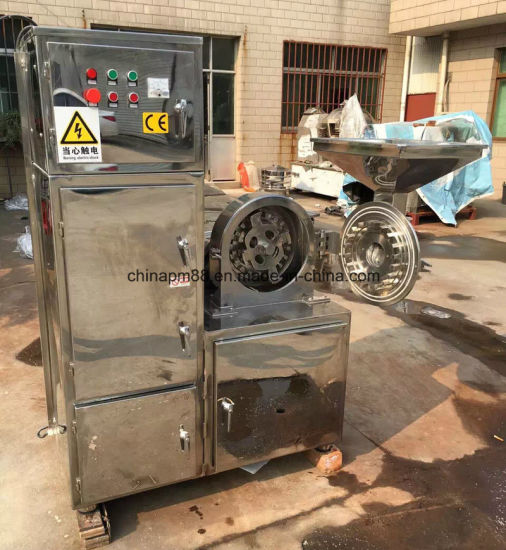

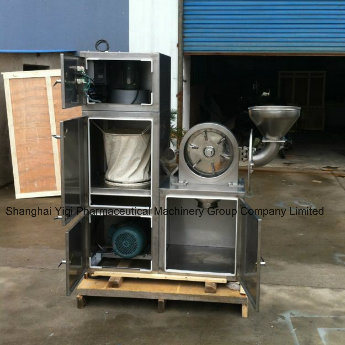

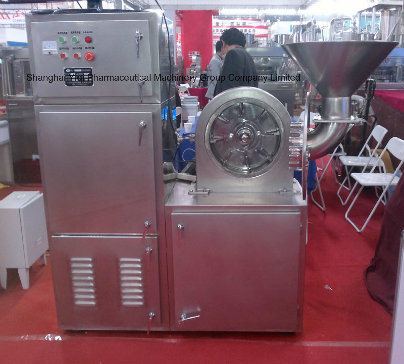

Coffee Pulverizer with Dust Collector Fl Series

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 30/Month
Payment Terms: L/C, T/T, Western Union
Model NO.: FL-350
Finished Surface: Outer Surface Process
Compressive Strength (For Crushing): >300MPA
Tongs′ Features: Universal Tongs
Cbm: 3cbm
Power: 5.5kw
Trademark: SYQ
Transport Package: Wood Case
Specification: 285kg
Origin: Shanghai
HS Code: 84791000
Type: Roller Crusher
Object: Chemical, Foods, Pharmaceutical Materials
Drive: Electric
Crushing Style: Grinding and Impact
Principle: Roller Culling
Cutter Material: High-Speed Steel

Product Description

Main Application

Is mainly suitable for pharmaceutical, chemical, food (example: ginger, chili, pepper, naked oats, beans, star anise, cinnamon, white sugar, crystal materials) crushing processing, low and medium hardness materials such as fineness regulation between 10-120 mesh, with high capacity , fine granularity, low noise, low energy consumption, easy maintenance and convenient installation, especially suitable for oily, viscosity, heat sensitive, fibrous low hardness materials etc.

Features

(1) The crushing chamber is equipped with the wind wheel type high-speed rotating cutter, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber.

(2) It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency.

3. Working Method

(1) The machine uses the wind wheel type high-speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen.

(2) different sizes of granules will be got by changing screen s .

Model	FL-250	FL-350	FL-600	FL-800
Capacity(kg/h)	30-300	40-800	500-1200	600-2000
Size of input granules(mm)	5	5	5	5
Size of output granules(mesh)	30-120	30-120	30-120	30-120
Motor power(kw)	5.5	11	22	37
Speed of principal axis(r/min)	4200	3800	2900	2500
Weight(kg)	285	350	650	1050
Overall size(LWH)	5504201400	7707501500	120010002250	165013002350
