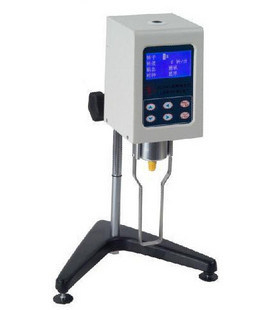

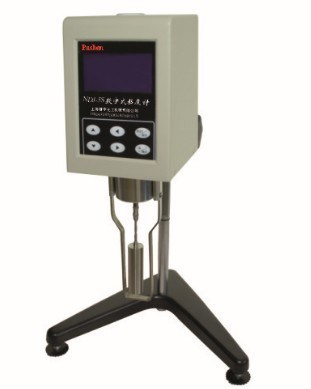

NDJ Series digital display Viscometer by adopting the high subsection driven step-motor and 16 bit micro-computer controlled processor with a LCD night visual display. The said meter is stable and accurate in motion, definitude in key demonstration, programmable in design, easy to operation. The display directly demonstrates the viscosity, rotating speed, rotor number and the maximum viscosity measured for the rotor selected for the current rotating speed. The main controlling board, subsection driven board are all manufactured by adopting the SMT. The circuit is adopted by the micro processor that is most advanced at present, with compact and reasonable structure. The full range and linearity at points are adjusted by PC interface. Its performance and functions have reached to the advanced level compared with the similar product in other countries.
NDJ Series are used in checking the viscosity resistance and dynamical viscosity of liquid. It is widely used in measuring the viscosity of various liquid such as grease, painting, foodstuff, dope, paper making, cosmetics, chemical industry, capsule stickiness agent and pharmaceutical industries. | Rang of Measurement | 10mPa.s-2,000,000mPa.s (1mPa.s=1cp) |
| Accuracy of Measurement | ±3% |
| Specification of Rotors | 4 rotors of No.1-4(rotor No.0 can be ordered) |
| Rotate Speed | 0.3/0.6/1.5/3/6/12/30/60r/min |
| Overall Dimensions | 95×130×155(L×W×H) |
| Net Weight | 2kg (not including lampstand) |
