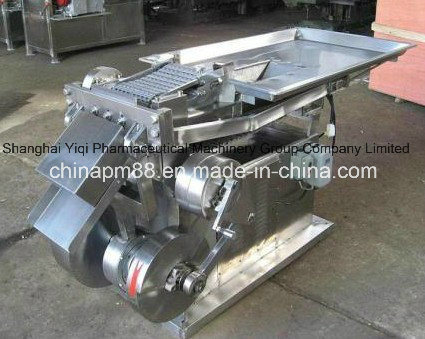

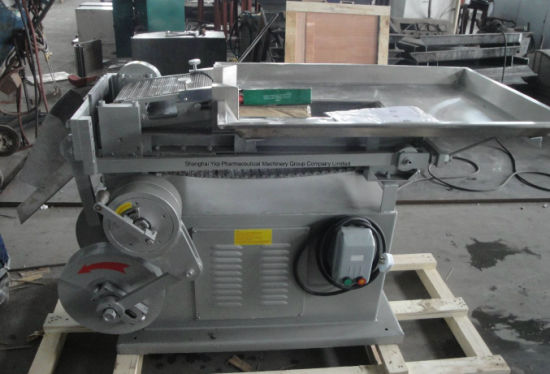

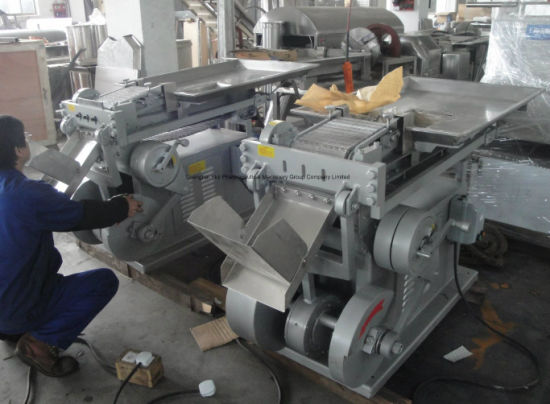

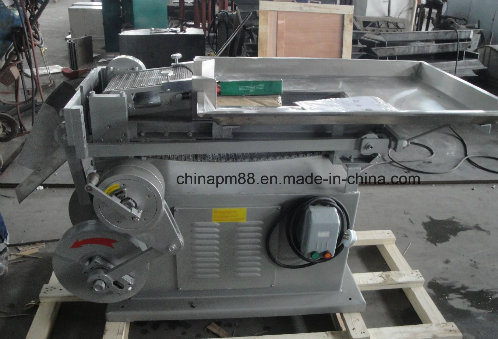

Ce High Quality Camomile Herbal Tea Processing Machine

Quantity:
  • Shanghai, China
  • 20000
  • L/C, T/T, Western Union
  • qyj-200
  • 510kg
  • 200kg/H
  • 0.4-25mm
  • NJ
  • Polywood Case
  • 2CBM
  • Shanghai
  • 8479899090
  • Animal Raw Materials, Forest Products, Special Agricultural Products, Garden Products, Agronomic Products, Natural Ingredients, Tobacco
  • Pet Food, Vegetable, Fruit, Herbs
  • Non-Customized
  • CE
  • Electric
  • Automatic
Working Features.
·The blades move from up to down by mechanical driver

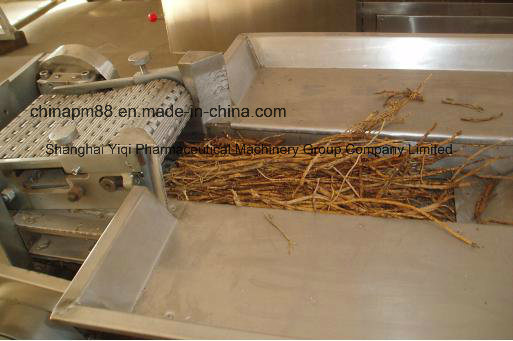

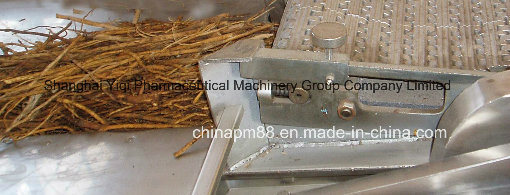

·Using stainless steel convey chain to transport herbal materials to the knife and get fine slices.
·The design of machine is very scientific, the five-star pulley (clutch) was milled cut through computer, owns high precision & rational structure.
·The machine is made of stainless steel 304, including the convey chain, it's very strong & durable, hard to slip & low noise, easy to clean.
·Meet the requirements of CE & GMP
·The upgraded machine is equipped with a emergency stop button for safety use. And an advanced type controller for stable and durable working life.
Main Technical Parameters
Capacity 50-800kg/h
Cutting size 0.5-25 mm(adjustable)
motor Y112M-6
Power 2.2kw / 380v / 3 Phase / 50Hz
Converter 3.7Kw
Cuts amount 357 times/min
Rotary Speed 940 r/min
Transmission chain width 200 mm
Size 1750 x 750 x 980 mm
Net Weight 420-450 Kg

Ce High Quality Camomile Herbal Tea Processing Machine
