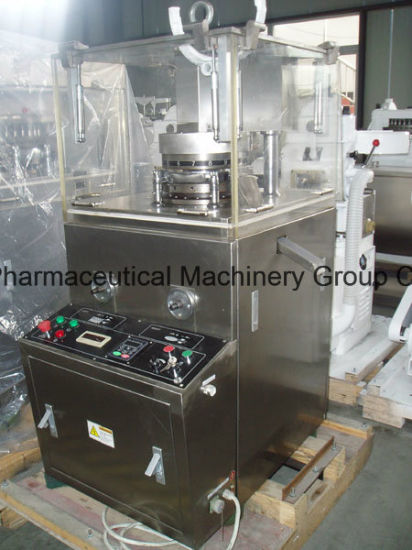

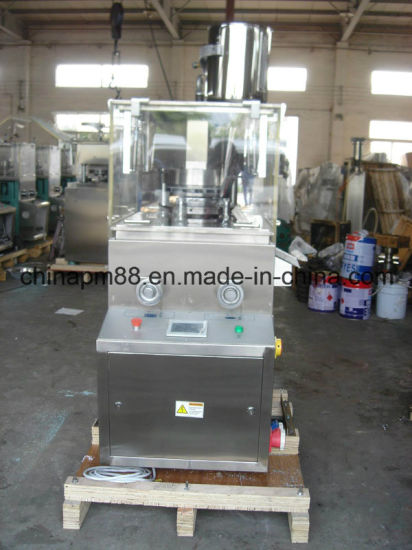

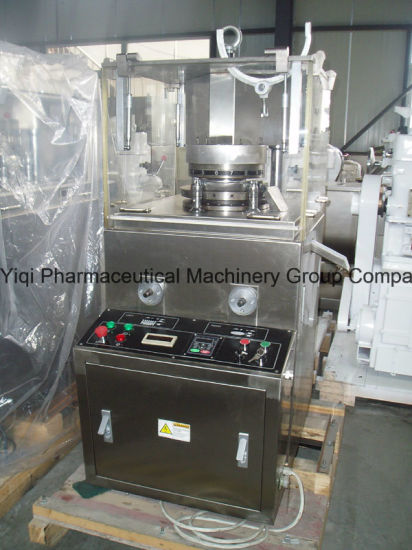

Ce Certified Single Press Type Rotary Tablet Press Machine Zp-17D

Quantity:
  • Shanghai, China
  • 2000/Year
  • L/C, T/T, Western Union
  • ZP-17D
  • Customized
  • New
  • 1 Year
  • Ce Certified Tablet Press
  • China Best Tablet Press
  • 20mm
  • 40000
  • SYQ
  • in Export Wooden Case
  • Meets GMP Requirement
  • Shanghai, China
  • 8479820090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, GMP, ISO
  • 380V
  • Computerized
CE certified and GMP standard Machine. It is a single-press type, continuous automatic rotary tablet press for pressing granules into tablets.It is mainly used in pharmaceutical, neutraceutical, chemical, food, electronic, plastic and metallurgical industries.

Operating principle:
1.The outside part of the machine is fully-enclosed, and it is made of stainless steel, meeting the G.M.P requirement.
2.It has transparent windows so that press condition can be observed clearly and the Windows can be opened.Cleaning and maintenance is easier.
3.The machine can press not only round tablets but also different geometrical shape tablets, double-layer and annular tablets, and the tablets may have the impressed letters on both sides.
4.All the controller and devices are located in one side of the machine, so that it can be easier to operate.
5.An overload protection unit is included in the system to avoid the damage of the punches and apparatus, when overload occurs.
6.The machine's worm gear drive adopts fully-enclosed oil-immersed lubrication with long service-life, preventing cross pollution

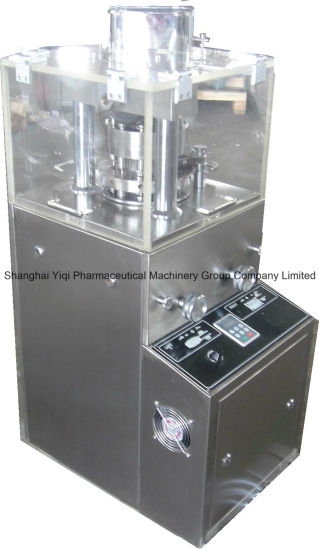

Other options(ZPS-8-10-20) with D toolings:

Ce Certified Single Press Type Rotary Tablet Press Machine Zp-17D

ZP Series other machinery:

. Ce Certified Single Press Type Rotary Tablet Press Machine Zp-17D

Ce Certified Single Press Type Rotary Tablet Press Machine Zp-17D

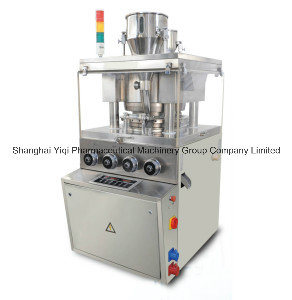

ZP-27 B tablet press machine for big tablets, effervescent tablets.

Ce Certified Single Press Type Rotary Tablet Press Machine Zp-17D

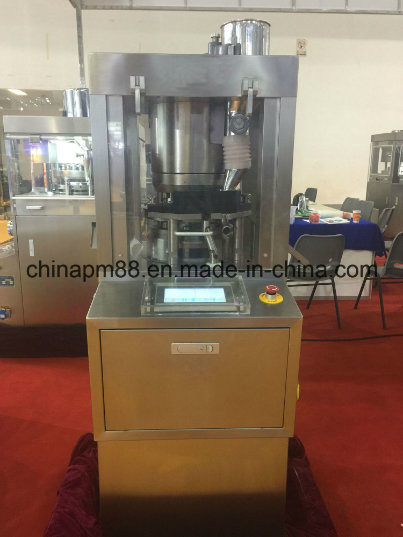

ZP-45 rotary tablet press machine with 200,000pcs/h capacity for max. 13mm tablets.



Main technical parameters of ZPW-17D:
Punches & Dies (sets) 17
Max. Pressure (kn) 60
Max. dia. of tablet (mm) 20
Max. Depth of fill (mm): 15
Max. Thickness of largest table (mm) 6
Max. Production capacity (pcs/h) 40,000
Turret speed (r/min) 37
Motor power (kW) 2.2/960, 380V/50
Overall size (mm) 615 x 890 x 1,415
Weight (kg): 1000
