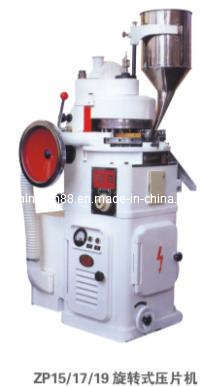

Camphor Ball Compression Machine & Pharmaceutical Rotary Tablet Press Machine (ZP-17)

  • 3000PCS/Y
  • Standard Packaging
  • L/C, T/T, Western Union
  • ZP17
  • Customized
  • New
  • 1 Year
  • Traditional Rotary Tablet Press for Max.20mm Dia
  • It Could Press Round Shape and Irregular Shapes
  • It Could Press Camphor Balls or Tablets
  • The Machine Is with Very Durable Life
  • syq
  • ZP-17
  • Shanghai, China
  • 8479820090
  • Preparation Machinery
  • Tablet
  • High Precision
  • CE, ISO
  • 380V
  • Computerized
It could press granules or powders into tablets with different shapes. It could be applied for compressing veterinary drug, calcium tablets, camphor balls, chemical tablets, and etc.
1. ZP17 rotary tablet press is a tradditional tablet press machine.
2. Tablet Shape: Oblong shape, round shape, and other special shape tablets by changing the different die and punches. This model machine also could press camphor ball, pill, chemical tablet and the pill for animals.
3. There are 4 Speeds adjustable, and the thickness is adjustable.
4. Overload damage-protected unit is assembled on the machine.

Technical Data of ZP17
Model: ZP17
Dies (Sets): 17
Capacity(PCS/h): 20400-40000
Max. Pressure: 50kn
Max. Dia. Of Tablet: 20mm
Max. Depth of Fill(mm): 15
Max. Thickness of Tablet (mm): 6
Turret Speed: 20-40/min
Motor: 2.2kw 960r/min, 380/50Hz
Overall Dimension(mm): 880*750*1600
Net Weight (Kg): 500
