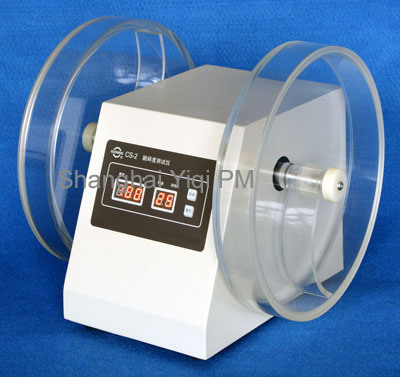

This tester is applied to test friability of non-coated tablets and other physics intensity like intensity of crushability.
National standard(Chinese codex)/2005
Corporate standard(Friability tester of tablets)
Single line and double cylinder, synchronized operation, auto at timing point.
The cylinder adopts high quality hyaline organic glass.
Rotation speed and number of turns can be set at will.
Operation is simple, the control precision is very high.
Automatically driving: Auto diagnoses, auto detection, auto alarm.
The quantity of cylinder: 2
The internal size of cylinder: Inside diameter: 286 mm deepness: 39 mm
The slide high of medicine: 156 mm
The range of rotation speed: 25 r/min
The accuracy of rotation speed: +/- 1 r/min
The range of number of turns: 100 circles
The accuracy of number of turns: +/- 1 circles
Continuous working hours: More than 24 hours
Power supply: 220V/50Hz/40W
Overall size: 370*300*340 mm
Net weight: 11 kg
