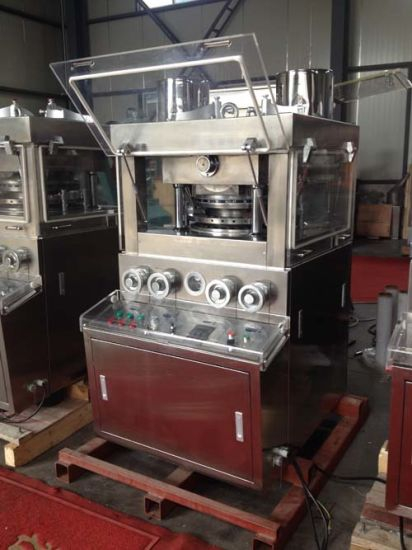

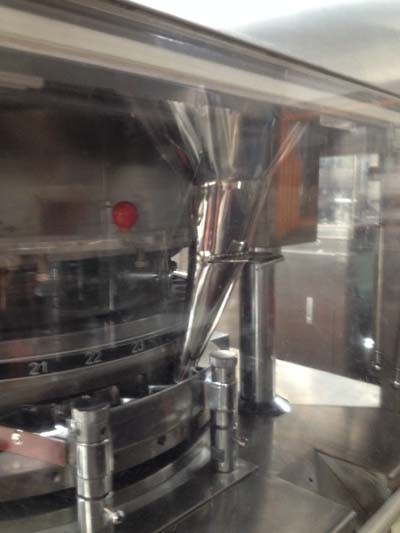

Rotary Tablet Press, ZPW31 Application & Features of ZPW31 1. ZPW31 pill press machine is for pressing dry powder. 2. ZPW31 rotary tablet press is the double-sided rotary press machine. It could press double color and impress sign on both sides. 3. This machine could press double layer tablet. It could press oval shape, oblong shape, round shape, and other special shape tablet, if the customer change the different die and punches. 4. ZPW31 rotary tablet press is made of stainless steel. The machine meets GMP. 5. Equipped with plexiglass perspective window which could help to observe the status of pressing piece. Side blank could be fully opened, easy to clean and maintain. 6. Frequency changing, speed regulating apparatus are used to regulate. The convenient operation and smooth rotation are safe. 7. Speed and thickness of the machine are adjustable. 8. Equipped with over-load protection apparatus. When overloaded with pressure, the machine will stop automatically. 9. ZPW29 / ZPW31 rotary tablet press can be controlled by PLC, semi-automatically lubricating equipment, anti-dust cover on the upper of revolving table. 10. Transmitting system is sealed in the oil box under the main machine. It is a separate component, no pollution, easy heat dissipation, wear resistance. 11. Powder cleaner could absorb the powder in the piece-pressing room. 12. Easily-damaged components such as upper orbit, material-adding machine, transmitting pole, powder measurer have general structures with ZP33 products which could help to be standard, general and series.
Technical Parameters:
Model ZPW31 Dies (sets) 31 Max. Pressure (KN) 80 Max. Dia. Of tablet (mm) 22 Max. Filling Depth (mm) 15 Thickness of largest tablet (mm) 6 Turret speed (r/min) 14-36 Production capacity (PC/h) 135000 Motor (kW) 3 Overall dimensions(mm) 1230*950*1670 Net weight (kg) 1700
