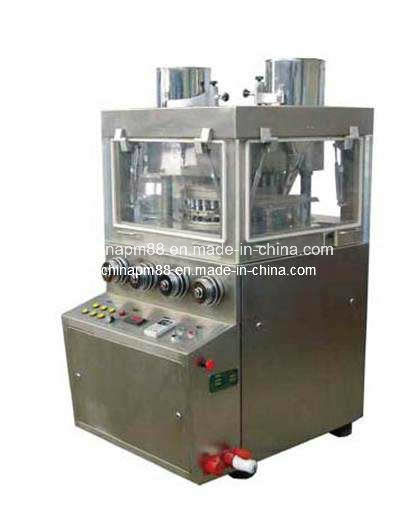

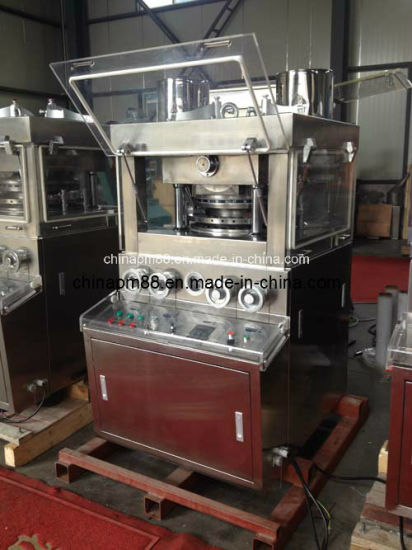

This machine is a double press rotary tablet press machine, also it could press round tablets and irregular shaped tablets or candies in the industry of chemical, pharmaceutical, food, and electronics. It also could press double layered tablets(double colors).
1. GMP Standard.
2. Max. Pressure 80KN.
3. Max. Diameter of tablet pressing: 24mm
4. Large working capacity: 135000PCS/h.
5. With overload protection system.
6. With powder suction case.
7. Mould could be generally replaced by ZP19, ZP33, ZP35 and ZP37 tablet press machine.
|Model ||ZPW29, 31 |
|Dies (sets) ||29 or 31 |
|Max. Pressure (KN) ||80 |
|Max. Dia. of tablet (mm) ||22 |
|Max. Filling Depth (mm) ||15 |
|Thickness of largest tablet (mm) ||6 |
|Turret speed (r/min) ||14-36 |
|Production capacity (pc/h) ||125000-135000 |
|Motor (kW) ||3 |
|Overall dimensions(mm) ||1230*950*1670 |
|Net weight (kg) ||1700 |
