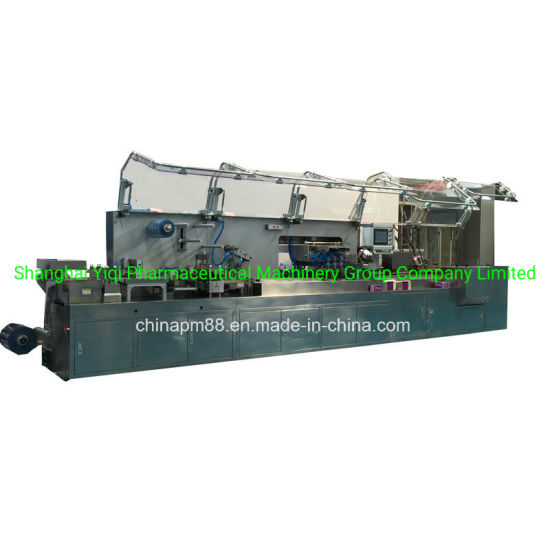

This is an automatic production line for the packaging of ampouls or vials, with GMP standard, and it includs the following characters:
1. with 4 servo motor driving, PLC control with high precision synchronous running with international advanced level.
2. Easy operation by touch screen.
3. With on-line detecting and rejecting system to ensure high quality packaging.
4. Adjust the running speed automatically according to output match and different packing requirement, to balance the system.
5. Only need to change few parts and simple adjustment when changed the product specifications, which is very fast and convenient.
6. All transmission systems adopt synchronizing belt with flexible coupling and strong resistance to impact, no need lubricating oil, which is healthful and easy to maintain.
7. With covers for security working.

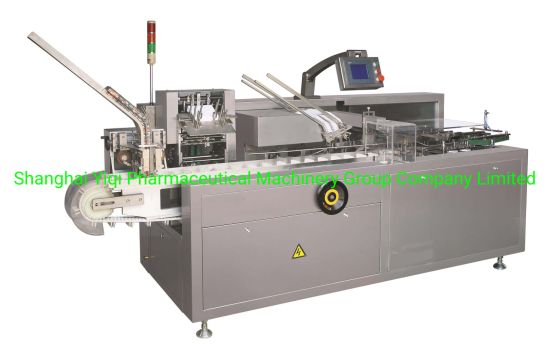

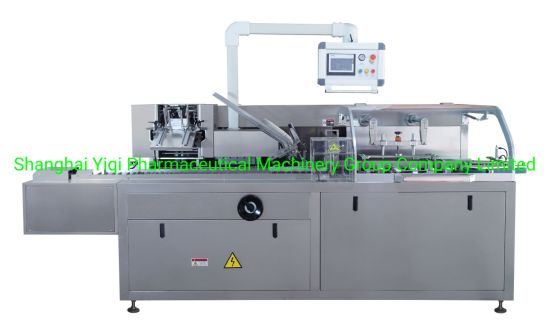

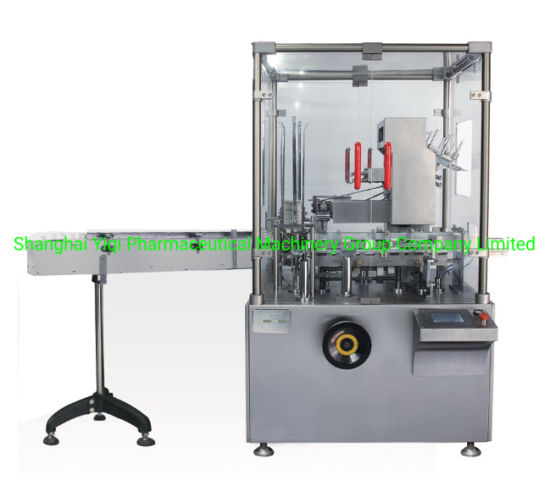

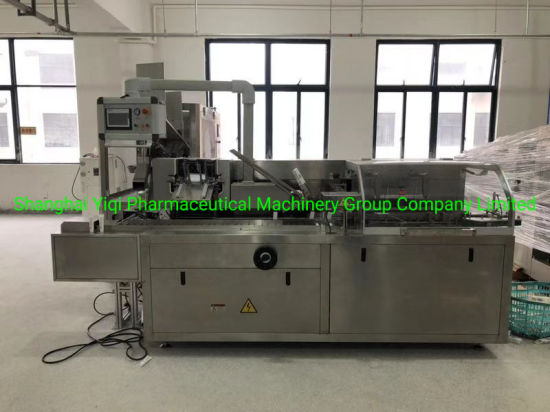

General Description This equipment is a new model which was developed base on integrated domestic and foreign vanguard technology. It is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running. This machine is suitable for automatic feeding round bottle / square bottle into cartons in pharmaceutical, cosmetic, food industry. On line the bottles will be unscrambled and fed, leaflet fold(1-4folds) and feeding, leaflet detecting, canton opening and forming, products and leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out. Machine frame: SS304 stainless steel Weight & Dimensions | Type | SYQ-100 |
| Dimensions in mm | 4300mm×1100mm×1550mm (L×W×H) |
| Weight in kg | 1600 |
Output & Speed | Steady production speed | 30-40cartons/min |
Carton | Grammage | Between( 350-400)g/m2 |
| Item | Pouch Size mm | Carton size mm |
| 2*4pcs | 145*65 | 147*120*54 |
| 1*3pcs | 100*84 | 110*122*21
|
Utilities | Standard power supply | 380V - 50Hz three phase |
| Power consumption in KW | 0.75 |
| Air consumption | 120-160L/min |
| Compressed Air Pressure | 0.6MPa |
| Noise | <70 dB |
3. Functions and Options - The cartoning machine includes an automatic station to form the cartons. The carton boxes are held by vacuum
- No suction carton by missing product
- Product will be manually loaded on conveyer by manual ,then other things finished automaticlly.
- Automatically displaying device for trouble, speed and finished products counting
- Machine stop running if no products or incorrect position of products. And stop automatically if incorrect position of product into carton after return or no cartons
- Adopt human-machine operation system.
- International famous brand of electric components such for PLC touch screen, frequency inverters, etc
- Stable performance, operation is easy Controls
Sensors - Product presence detection sensor
- Carton present detection sensor
