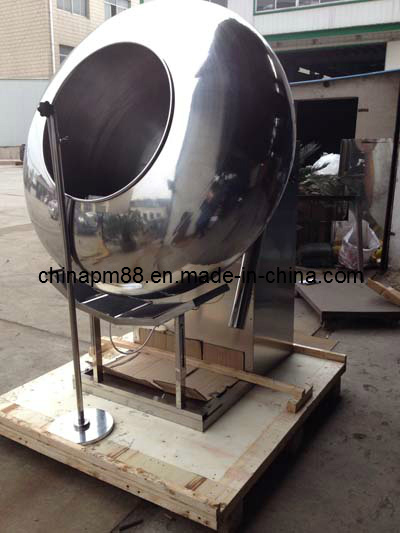

BY1000/800 Sugarcoating Machine
Application
These machines sugarcoat the tablets and pills for pharmaceutical and food industries. It is also used for rolling and heating beans and edible nuts or seeds. As its feature, the sugarcoating round pot is elevated with an elevation 30degree centigrade to the horizontal, the heater such as gas or electrical heater can be placed directly under the pot.
A separated blower with electrical heater is provided with the machine. The pipe of the blower stretches into the pot for heating or cooling purpose. The thermal capacity can be selected in two levels
| Model | Working Capacity (kg/batch) | Angle of Pot | Motor Power (kw) | Fan(w) | Overall Dimension(mm) | Heat Power | Weight | Speed rpm | |
| BY-300 | 1-3 | 30° | 0.37 | 40 | 800×800×1200 | 1KW | 200KG | 0-46 | |
| BY-400 | 2-5 | 30° | 0.55 | 40 | 800×800×1200 | 1KW | 200KG | 0-46 | |
| BY-800 | 30-50 | 30° | 1.1 | 200 | 1000×1000×1550 | 3KW | 400KG | 0-32 | |
| BY-1000 | 50-70 | 30° | 1.5 | 200 | 1200×1200×1600 | 4KW | 450KG | 0-32 | |
| BY-1250 | 80-150 | 30° | 2.2 | 370 | 1350×1350×1600 | 6kw | 550 | 0-30 | |
