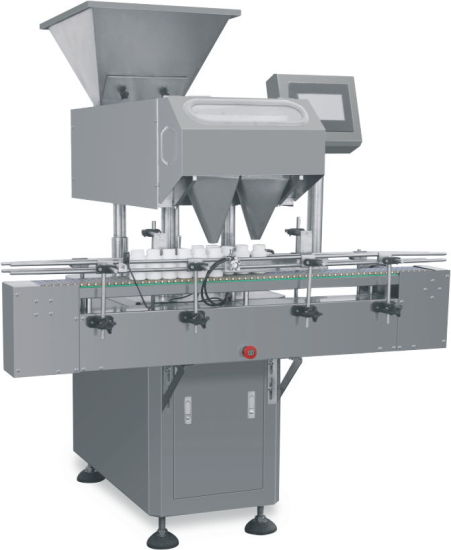

Automatic Tablet Counting Packing Machine

Quantity:


Inquire

Port: Shanghai, China
Production Capacity: 800
Payment Terms: L/C, T/T, D/P, Western Union
Model NO.: 24- 32 channel tablet counter
Customized: Non-Customized
Condition: New
Warranty: 1 Year
Weight: 580kg
Capacity: 20-90 Bottles/Min
Capsule Size: 00 ~ 5 #
Soft Capsules: 5.5 ~ 20mm Diameter
Pills: 3-20mm Diameter
Trademark: SYQ
Transport Package: Woodend Case
Specification: 24 channels
Origin: Shanghai
HS Code: 8433909090
Type: Pharmaceutical Packaging Machinery
Finished Dosage Form: Tablet
Precision: High Precision
Certification: CE, GMP, ISO
Voltage: 380V
Computerized: Computerized

Product Description

The working principle

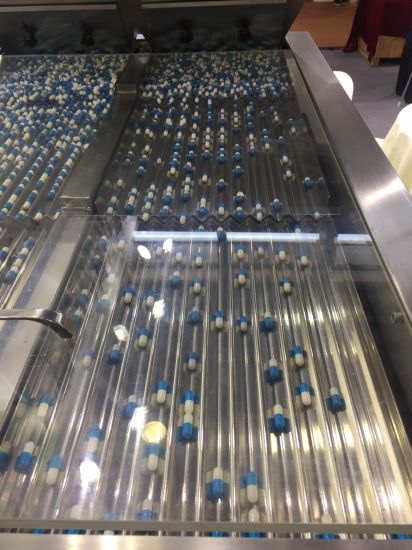

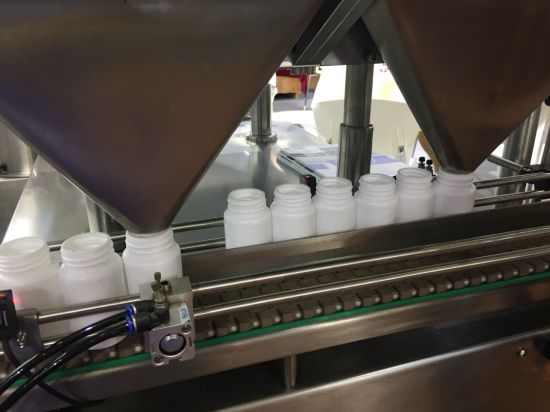

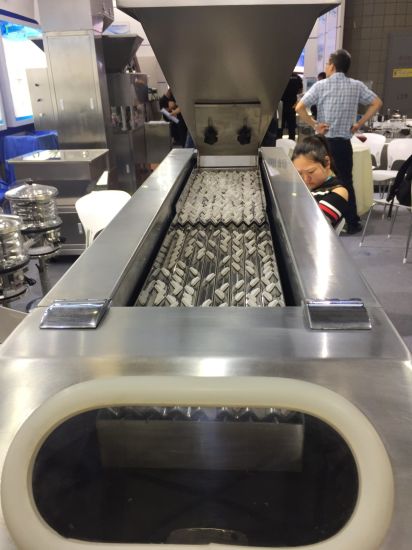

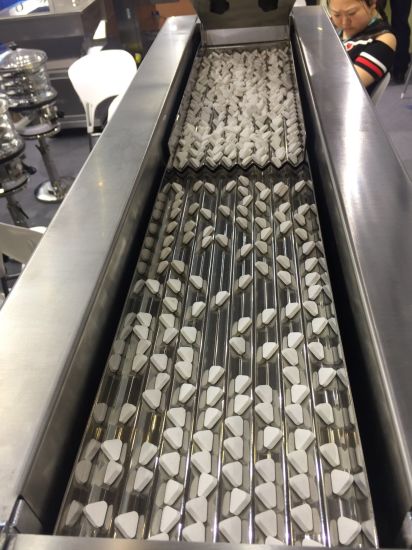

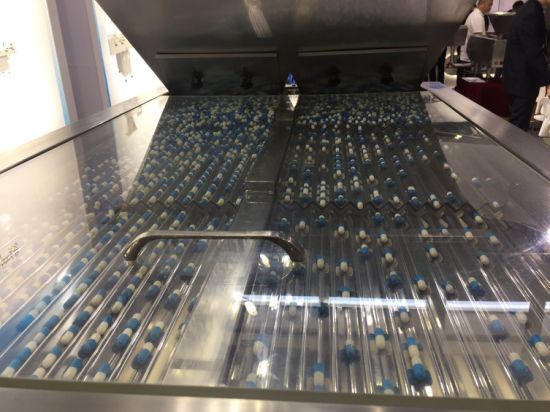

Bottle mechanism: the bottle stopper on the bottle feeding track will stop the bottles from the previous equipment in the filling position and wait for filling. The medicine enters the medicine storehouse orderly by the vibration of the corrugated plate. A counting photoelectric sensor is installed on the medicine storehouse, and the medicine falling into the medicine storehouse is loaded into the bottle at the bottling position after quantitative counting by the photoelectric counting sensor.
The main features
(1) strong compatibility, it can count and bottle tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles;
(2) vibration blanking: 24 channel vibration even blanking, special patent flip plate packaging mechanism blanking, discharging uniform and stable, no damage to the drug;
(3) anti-high dust: the company's original anti-high dust photoelectric sensing technology can work stably in the case of high dust;
(4) accurate counting: photoelectric sensor automatic counting, bottling error is less than the national standard;
(5) special structure of leakage, can prevent plugging, small bottle bottle can also quickly bottling (optional);
(6) high degree of intelligence, with no bottle no number, fault self-test and other detection alarm control functions;
(7) supporting functions: automatic detection of missing bottle photoelectric sensor, automatic shutdown;

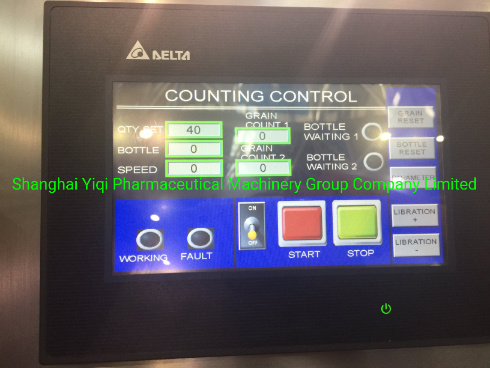

(8) simple operation: intelligent design is adopted, and various operating parameters are set as required;
(9) easy maintenance: operators only need simple training to operate, disassembly, cleaning, replacement parts is simple and convenient, do not need tools;
(10) sealing and dustproof: dust removal box is equipped to reduce dust pollution (optional).

Main technical parameters

Bottle	round, square plastic bottle
Filling objects:	00 ~ 5 # capsule, soft capsule, 5.5 ~ 20 Φ tablet, special-shaped pieces, sugar pill, Φ 3 ~ 20 pills Production capacity: 20-90 bottles/min (related to bottle size, loading capacity and drug size)
Power	AC220V 50Hz 1.5kw
Accuracy:	> 99.5% (better than industry standard)
Source:	0.6 Mpa
Overall dimensions:	1760 x 1650 x 1650mm
Weight:	580 kg
Bottled volume setting range:	1 -- 9999
