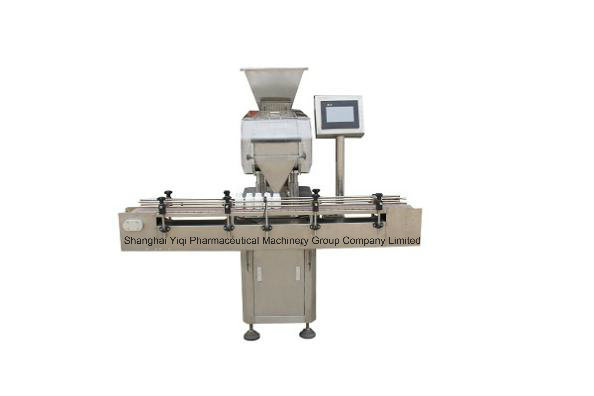

Automatic Tablet Capsule Electronic Counting Bottle Filling Machine/Pharmaceutical Packing Machine

Quantity:
  • Shanghai, China

  • 600

  • L/C, T/T, Western Union

  • SCJ-8-12-16-32-48

  • Non-Customized

  • New

  • 1 Year

  • 1450 × 1400 × 1560

  • 20-40 Bottles/Min

  • for Tablets, Capsules, Pills, Gums

  • SYQ

  • Standard Polywood

  • 2CBM

  • Shanghai

  • 8422303090

  • Pharmaceutical Packaging Machinery

  • Tablet

  • High Precision

  • CE, GMP, ISO

  • 220V

  • Computerized

Application & Features:

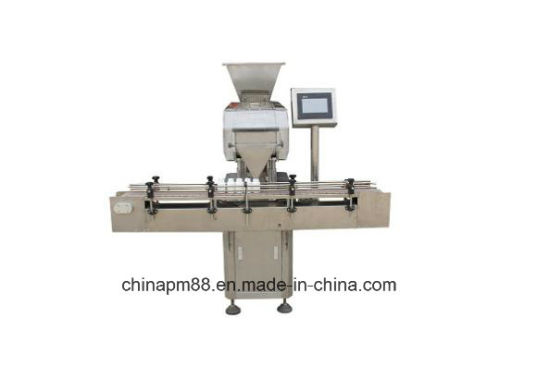

The a utomatic Electronic counting machine is designed for counting tablets, soft gelatin, hard capsule s and chewing gums, etc.

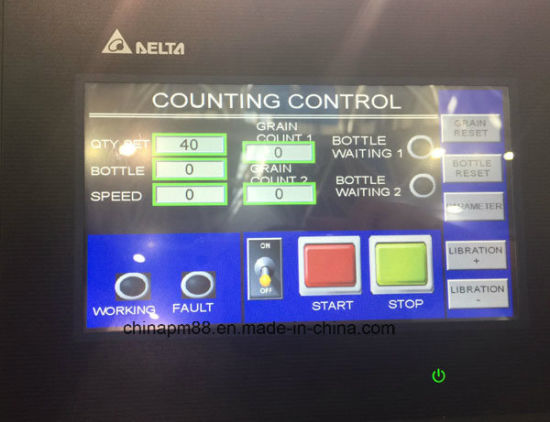

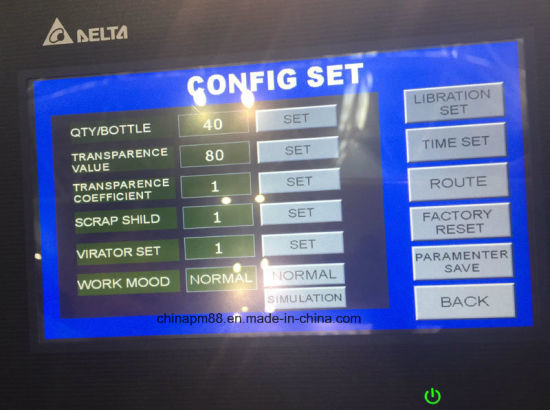

The machine comes with t ouch screen and PLC Control , and it works with high precision.

This model of automatic counting machine with counting sensors and guidways.
It is no need change mould when you change the counting object, only adjusting the counting table height by e asy a djust wheel.

Automatic Tablet Capsule Electronic Counting Bottle Filling Machine/Pharmaceutical Packing Machine



Main Technical Parameters:
Model Name SCJ-8/12/16/32/48 electronic automatic tablet/capsule counting machine
Application
  1. Filled capsule(00-5#)
    2. Soft Gelatin capsule
    3. chewing gum
    4. tablets
    5. pills and other solid objects
Hopper Volume 40L
Capacity 10-50bottles/min
Bottle shape Round/ square
Filling Quantity 10-9999pcs/bottle (adjustable)
Bottle Size Diameter: 30-75mm
Height:40-250mm
Counting Size Thickness: 3-10mm
Diameter: 3-15mm
Length: 3-25mm
Compressed air 0.5Mpa
Power AC220V 50Hz 0.8kw
Conveyor Belt Length 2400mm
Machine Weight 220kg
Machine Size L × W × H (mm) 1450 × 1400 × 1560
