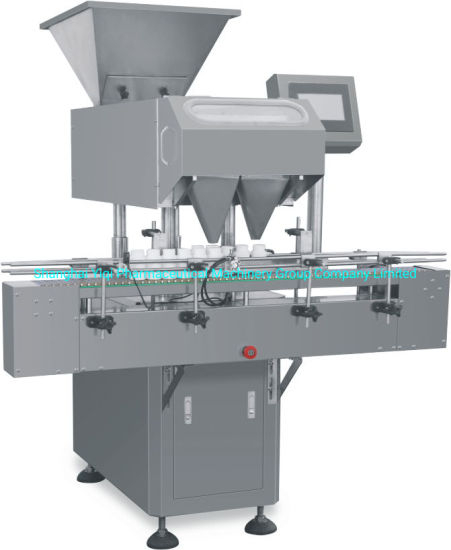

Automatic Production Line Counting Machine for Capsule and Tablet

  • Shanghai, China
  • 2000
  • L/C, T/T, D/P, Western Union
  • EC-16B
  • Customized
  • New
  • 1 Year
  • PLC & Touch Screen
  • Could Be a Packing Line
  • SYQ
  • Wooden Case
  • could be 8 channel, 12 channel, 16 channel double
  • Shanghai
  • 8433909090
  • Pharmaceutical Packaging Machinery
  • Tablet, Capsule, Pills
  • High Precision
  • CE, GMP, ISO
  • 220V
  • Computerized
Working principle of the Automatic pharmaceutical tablet/capsule counting machine

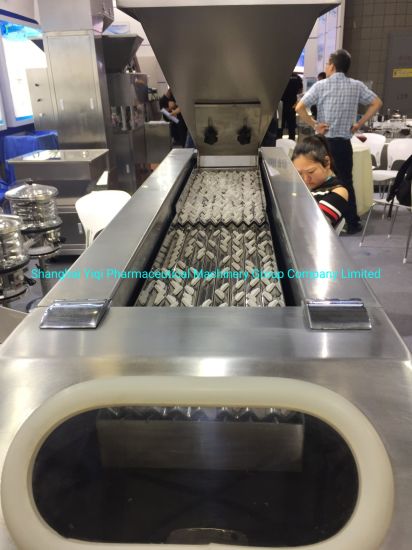

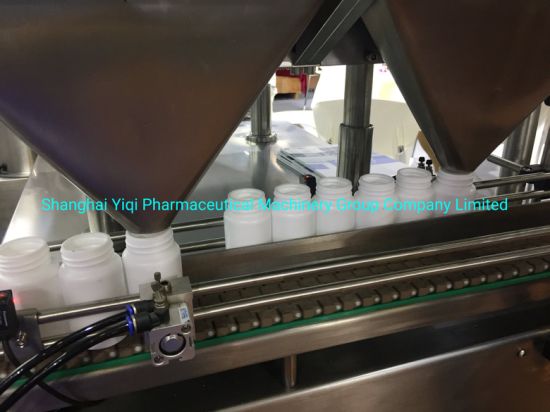

Bottle mechanism: the bottle stopper on the bottle feeding track will stop the bottles from the previous equipment in the filling position and wait for filling. The medicine enters the medicine storehouse orderly by the vibration of the corrugated plate. A counting photoelectric sensor is installed on the medicine storehouse, and the medicine falling into the medicine storehouse is loaded into the bottle at the bottling position after quantitative counting by the photoelectric counting sensor.

The main features
(1) strong compatibility, it can count and bottle tablets (including special-shaped tablets), capsules, soft capsules (transparent, opaque), pills and other solid preparations or solid particles;

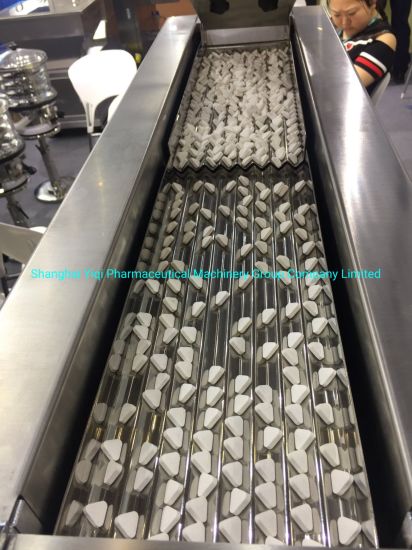

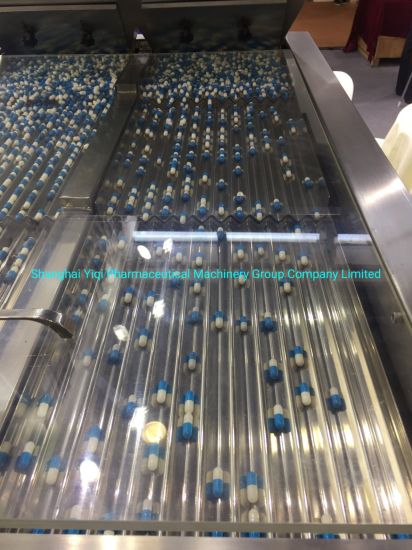

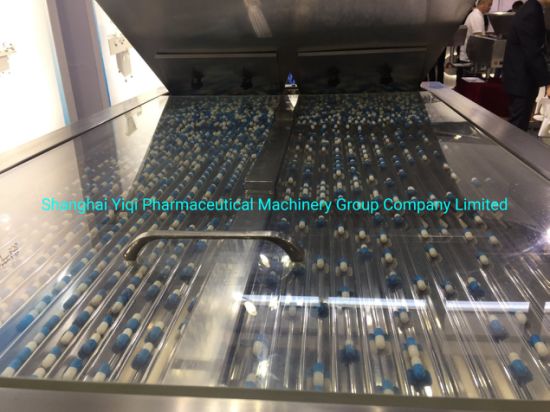

(2) vibration blanking: 24 channel vibration even blanking, special patent flip plate packaging mechanism blanking, discharging uniform and stable, no damage to the drug;
(3) anti-high dust: the company's original anti-high dust photoelectric sensing technology can work stably in the case of high dust;
(4) accurate counting: photoelectric sensor automatic counting, bottling error is less than the national standard;
(5) special structure of leakage, can prevent plugging, small bottle bottle can also quickly bottling (optional);
(6) high degree of intelligence, with no bottle no number, fault self-test and other detection alarm control functions;
(7) supporting functions: automatic detection of missing bottle photoelectric sensor, automatic shutdown;

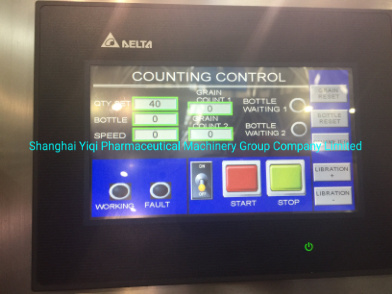

(8) simple operation: intelligent design is adopted, and various operating parameters are set as required;
(9) easy maintenance: operators only need simple training to operate, disassembly, cleaning, replacement parts is simple and convenient, do not need tools;
(10) sealing and dustproof: dust removal box is equipped to reduce dust pollution (optional).

Main technical parameters
Applicable bottle round, square plastic bottle
Filling objects 00 ~ 5 # capsule, soft capsule, 5.5 ~ 20 Φ tablet, special-shaped pieces, sugar pill, Φ 3 ~ 20 pills
Production capacity 20-90 bottles/min (related to bottle size, loading capacity and drug size)
Bottled volume setting range 1 -- 9999
Power AC220V 50Hz 1.5kw
Accuracy > 99.5% (better than industry standard)
Air Source 0.6 Mpa
Overall dimensions 1400×1400×1560mm
Weight 220kg

Automatic Production Line Counting Machine for Capsule and Tablet

Automatic Production Line Counting Machine for Capsule and Tablet
Automatic Production Line Counting Machine for Capsule and Tablet
