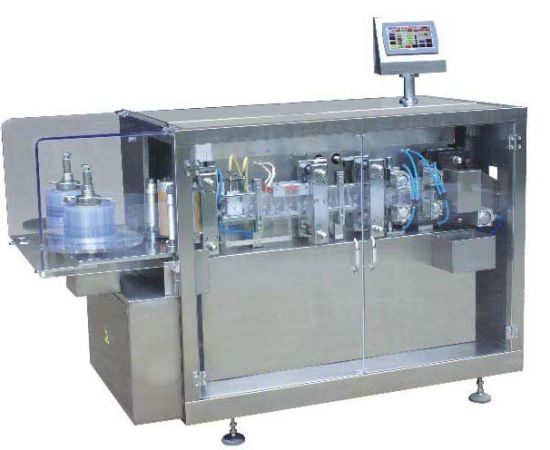

Automatic Plastic Ampoule Forming Filling and Sealing Machine

Quantity:



Inquire

Production Capacity:
800units/Y
Transport Package:
Strong Export Standard Packaging
Payment Terms:
L/C, T/T, Western Union
Model NO.:
GGS Series
Filling Principle:
Pressure
Packaging Container Lifting Structure:
Pneumatic Lifting
Structure:
Linear
Packaging:
Plastic Ampoule
Packaging Material:
Plastic
for The Filling of Pesticides:
for Filling of Perfume
for Filling of Chemical Liquid:
for Food Industry
It Is Automatic Plastic Ampoule Forming:
Automatic Ampoule Filling Sealing Machine
Trademark:
syq
Specification:
CE ISO
Origin:
Shanghai
HS Code:
8479820090
Type:
Volumetric Filling Machine
Automatic Grade:
Fully Automatic
Material Type:
Liquid
Filling Valve Head:
Multi-Head
Feed Cylinder Structure:
Single-Room Feeding
Dosing Device:
Plastic Ampoule

Product Description

Application:

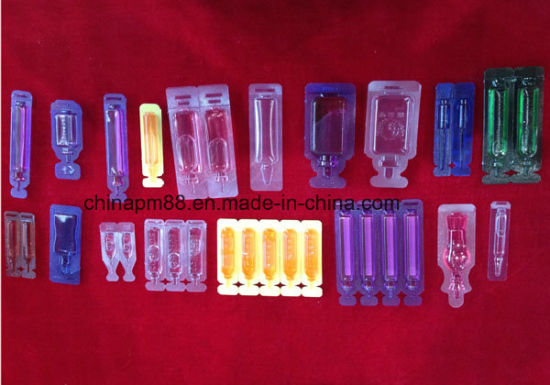

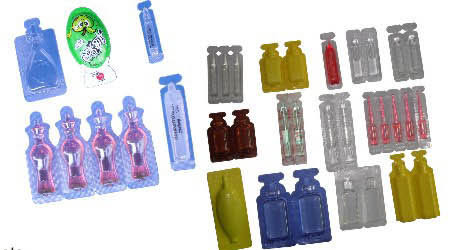

This equipment is widely applied in the industry of agricultural, pharmaceutical, food, and chemical for the filling of pesticides, oral solution, perfume, cosmetics, liquid, and fruit pulp etc.

Features of the machine:

PLC control for all the procedures of PE/PVC roll spreading, ampoule forming, filling, sealing, printing serial numbers, cutting the ends, and cutting apart the ampoule.
Easy operation with HMI.

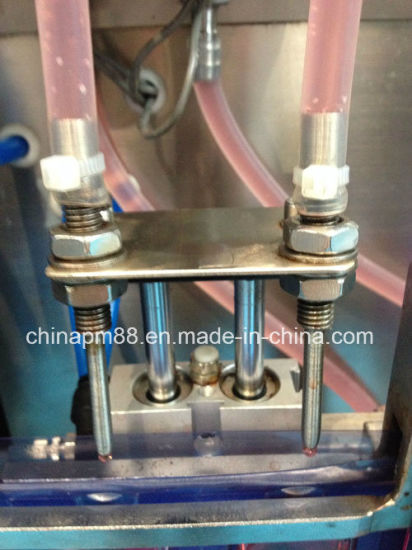

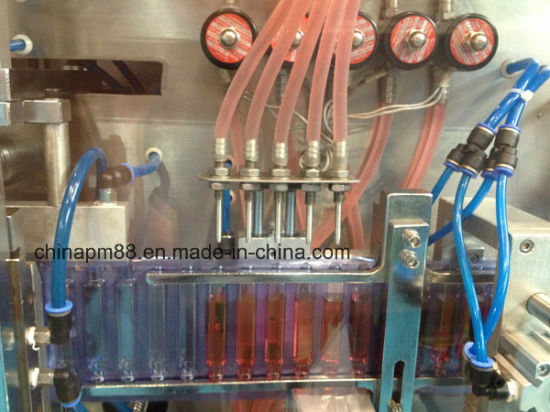

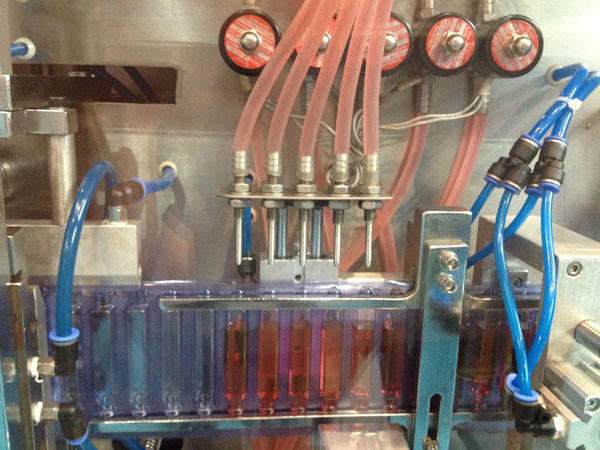

No drop, leak, and bubble, and spillage for the filling heads.
GMP standard, the machine is made of stainless steel.
Pneumatic components and wirings are imported with world famous brands.
Automatic and mechanical filling, precise calculation.

You may have two choices for different application and capacity required:

Automatic Plastic Ampoule Forming Filling and Sealing Machine

Max. Forming depth(mm)	12
Cutting frequency(times)	0-25
Packing materials(mm)	PVC, PE(0.2-0.4)*120mm
Filling range(ml)	2-25ml
Power(kw)	3.5
Voltage	220-380V, 50hz
Overall dimensions(mm)	18008001400
G. W.(kg)	350

Pharmaceutical Machinery Filling Machine Plastic Ampoule
