This is designed for cutting the Chinese herbal medicine of roots, stems, grass, bark, block and fruit type. It is also for cutting the tobacco and some vegetables, widely applied in the light industry, food and pharmaceutical industries.

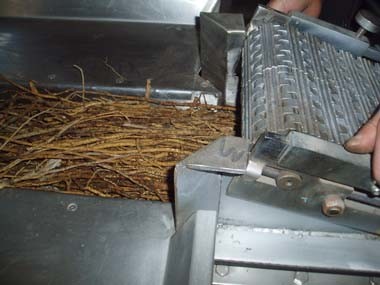

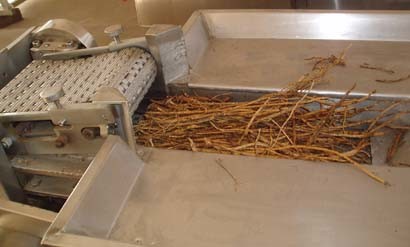

The uncut raw material is fed by a transport chain from the backward material plate.When going forward an upper chain covers the cutting material.
Then the highly compressed material comes out by steps, and finally the hanging out material is cut off by an up and down moving system of knives.
Technical Parameters:
Speed of main axis 75r/min
Cutting speed 357times/min
Transport Chain Width:200mm
Quantity of knives 1
Size of the entrance of knife door 200*50mm
Length of pieces 0.5-25mm
Working capacity 200kg/hr
Operating performance continuously
Size 1820X620X1020
Height of operation 820mm
Power 2.2kw
Rotation Speed 960rpm
Motor Y112M-6
Weight 500kg
