CE approved machine widely exported to EU countries.

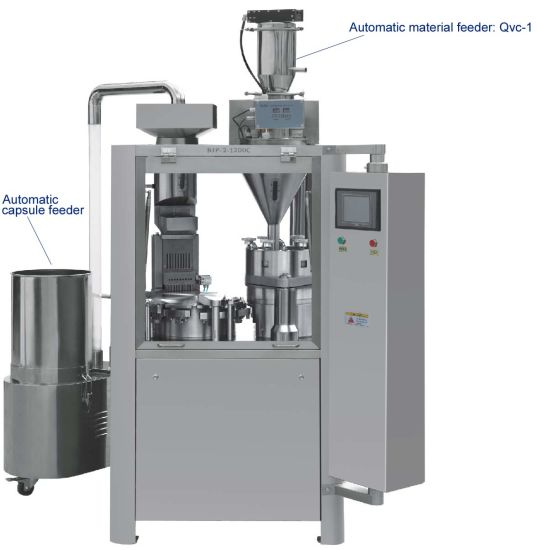

1. Fully automatic pharmaceutical machinery for hard capsule filling.
2. PLC and HMI controlled. It can complete feeding, opening capsules, filling, rejecting unqualified products, closing capsules, discharging and etc.
3. GMP, ISO, CE standards. 4. Save cost of labor consumption and increases production efficiency.
5. Totally closed working station keeps environment dustless, clean and sanitary and safe.
6. PLC and touch screen makes high precision, easy operation, clear display.
7. Imported electrical equipments and bearing main parts guarantees stable, high efficient, precise performance.
8. 12 months guarantee and we can send engineer to customer factory for installation, commissioning machines, training customer's technicians.
We offer spare parts in time.
9. Material contact part is made of stainless steel 304 or 316L as option.
You also could choose NJP-2000C, NJP-2300C, NJP-3500C... for larger capacity pharmaceutical manufacturing scale.
Model NJP-2000C-2
Working Capacity2000 capsules/min
No. of Dose18
Size of Hard Capsule 00#, 0#, 1#, 2#, 3#, 4#
Total Power 8KW
Main Motor 2.2KW
Vacuum pump2.2KW
Dust collector 3KW
Noise <80DB
N.Weight1500Kg
Machine Dimension1010mm (L) x 10800mm(W) x 2000mm(H)
Accuracy+ 1% Depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity.
.
| Model | NJP-1200C-2 |
| Working Capacity | 1200 capsules/min |
| No. of Dose | 9 |
| Size of Hard Capsule | 00#, 0#, 1#, 2#, 3#, 4# |
| Total Power | 6.6KW |
| Main Motor | 1.5KW |
| Vacuum pump | 2.2KW |
| Dust collector | 2.2KW |
| Noise | <80DB |
| N.Weight | 1100Kg |
| Machine Dimension | 860mm (L) x 940mm(W) x 1900mm(H) |
| Accuracy | + 1% Depending upon the consistency, uniformity & bulk density of powder under the controlled level of humidity. |
