Main Application Is mainly suitable for pharmaceutical, chemical, food (example: ginger, chili, pepper, naked oats, beans, star anise, cinnamon, white sugar, crystal materials) crushing processing, low and medium hardness materials such as fineness regulation between 10-120 mesh, with high capacity , fine granularity, low noise, low energy consumption, easy maintenance and convenient installation, especially suitable for oily, viscosity, heat sensitive, fibrous low hardness materials etc. Features (1) The crushing chamber is equipped with the wind wheel type high-speed rotating cutter, so that the airflow in the chamber is strong enough to eliminate any heat in the chamber. (2) It possesses the merits of smooth operating, dismantling and assembling, low noise and good crushing efficiency. 3. Working Method (1) The machine uses the wind wheel type high-speed rotating cutters and the fixed cutters to crush, mill and shear raw material, which is accompanied by strong airflow inside of the chamber to bring out the heat with the finished products through the screen. (2) different sizes of granules will be got by changing screen s . | Model | FL-250 | FL-350 | FL-600 | FL-800 |
| Capacity(kg/h) | 30-300 | 40-800 | 500-1200 | 600-2000 |
| Size of input granules(mm) | 5 | 5 | 5 | 5 |
| Size of output granules(mesh) | 30-120 | 30-120 | 30-120 | 30-120 |
| Motor power(kw) | 5.5 | 11 | 22 | 37 |
| Speed of principal axis(r/min) | 4200 | 3800 | 2900 | 2500 |
| Weight(kg) | 285 | 350 | 650 | 1050 |
| Overall size(L*W*H) | 550*420*1400 | 770*750*1500 | 1200*1000*2250 | 1650*1300*2350 |

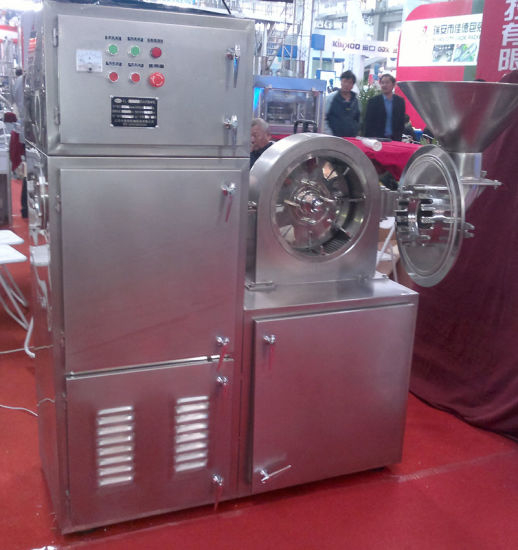

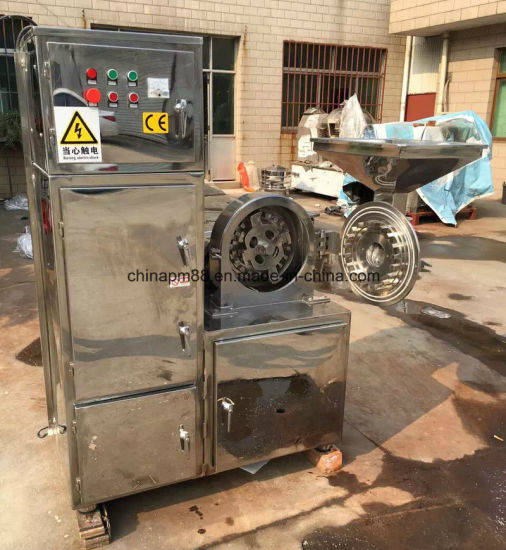

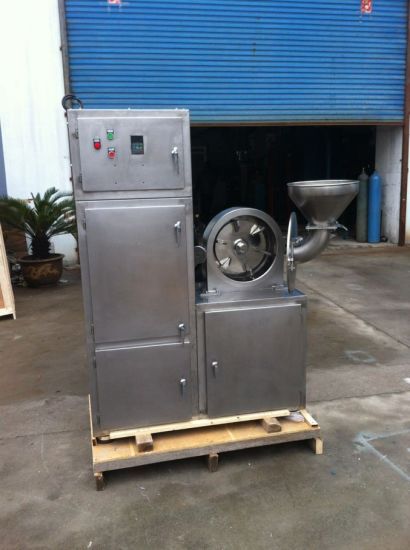

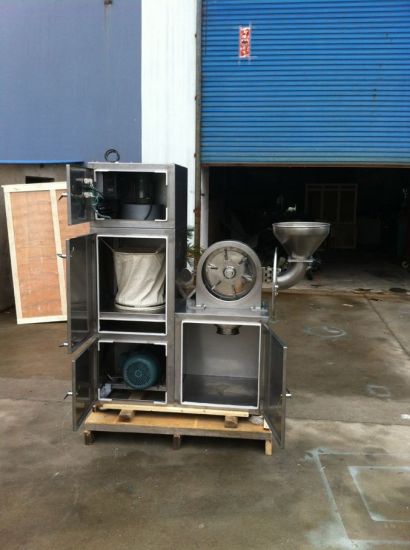

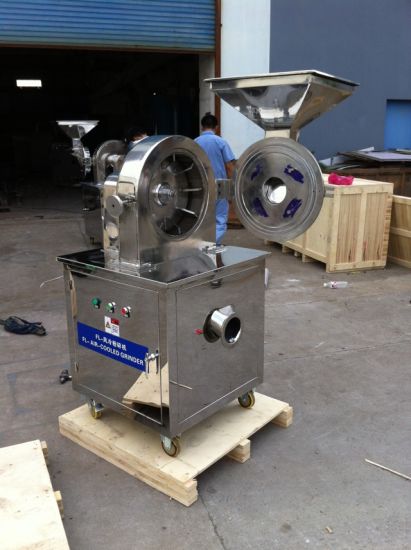

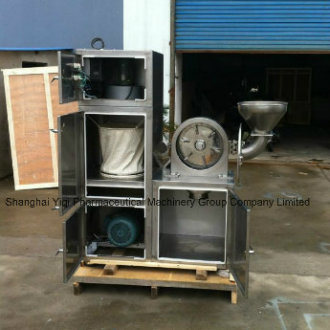

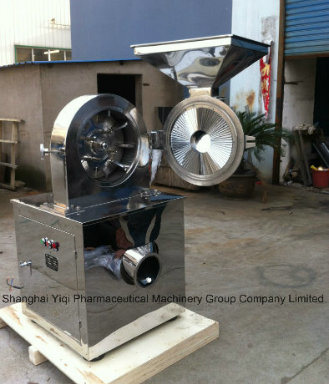

Air cooling pulverizer with dust collection system AIR COOLED FINE CRUSHER WITHOUT DUST FILTER SYSTEM
welcome to check with us for any informatiom and specs of pulverizers for grains and spices.
